Product Details:
Payment & Shipping Terms:
|
| Material: | Silicone Raw Material, Polyster | Hardness: | 70 A |
|---|---|---|---|
| Feature: | Environment Friendly, Non-toxic, Tasteless, Safe And Reliable | Color: | Translucent, White, Red, Black, Etc |
| Temperature: | -60℃~200℃ | ||
| High Light: | Double braid reinforced silicone tubing,Odorless high temp food grade hose,100m high temp food grade hose |
||

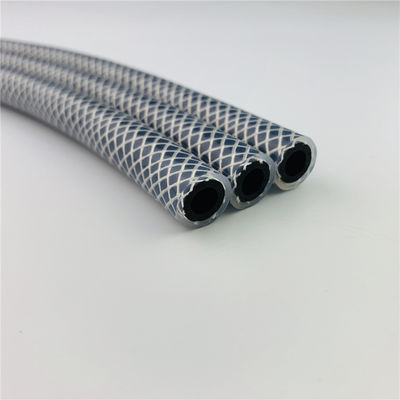

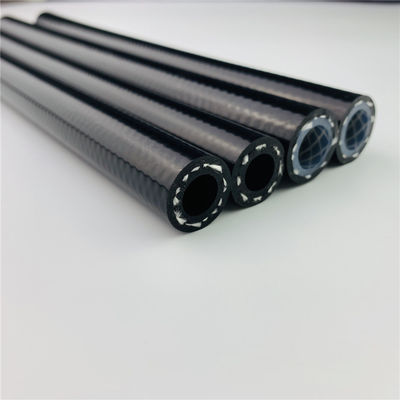

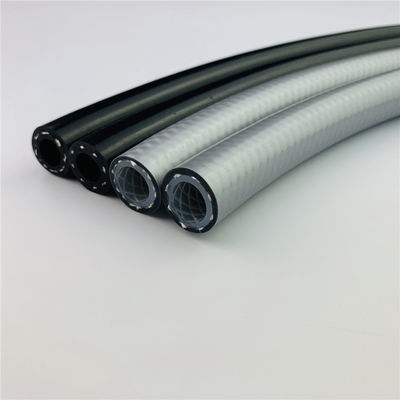

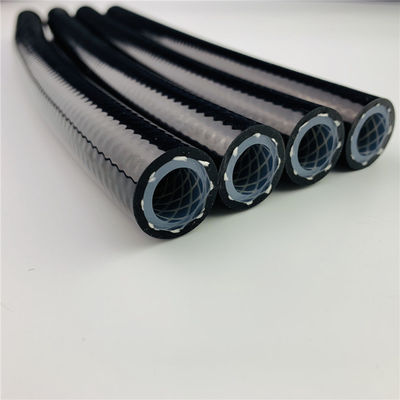

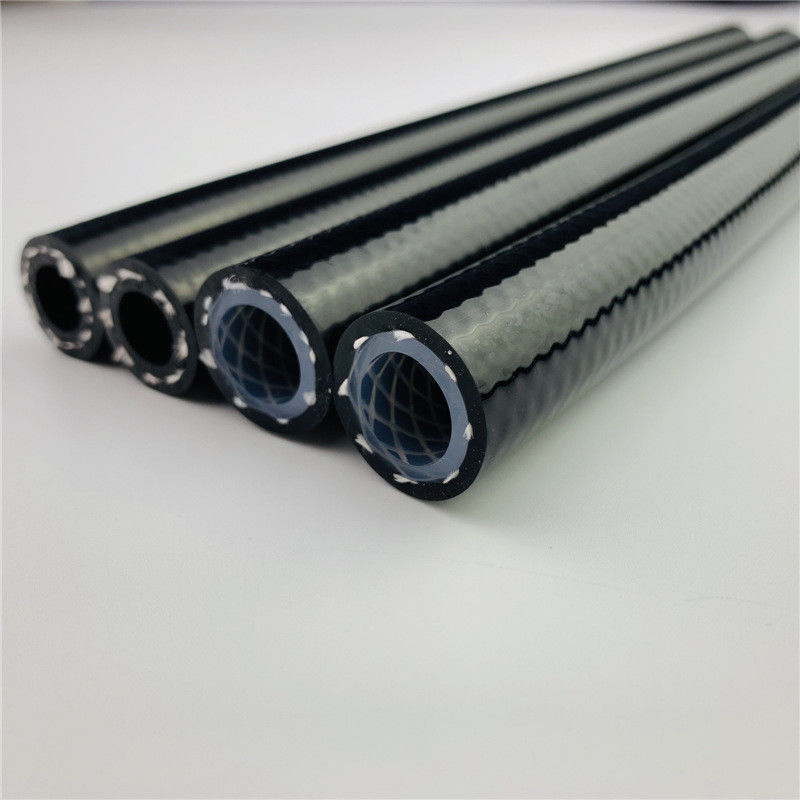

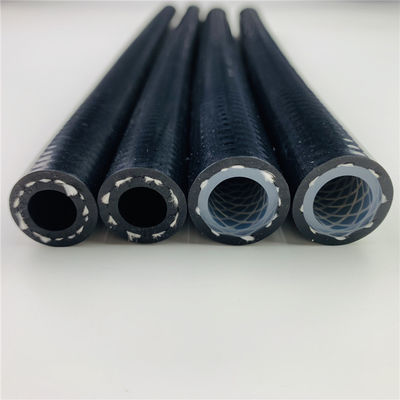

Black Silicone Braided Hose
Product Description
| Brand Name: | Tenchy |
| Material: | Silicone raw material, Polyster |
| Color: | white, red, blue, gray, green, etc |
| Size: | Customized |
| Hardness: | 70A |
| Temperature: | -60℃~200℃ |
| Application: | Food Processing Equipment Pharmaceutical & Bio Pharma Industries Aerospace & Military Industries Automotive Electrical Industries Minor Appliances Heater Tubing’s Autoclave, man-way, and oven gaskets Brewery Transfer Silicone Tubing |
Physical Properties
| Hardness Liner | 70±5A |
| Hardness Cover | 60±5A |
| Tensile strength | >8.5MPa |
| Elongation at break | >320% |
| Tear resistance (tear strength) | >25KN/m |
| Britle temperature | -40°C (-40 ℉) |
| Maximum Operating Temperature | 180°C (356 ℉) |
Specification
| Item Code | ID | OD |
Min. Bend Radius Inch |
Working Pressure | Burst Pressure | |||||
| (mm) | (inch) | (mm) | (inch) | (mm) | (inch) | (Bar) | Psi | (Bar) | (Psi) | |
| RFSB-003 | 3.18 | 1/8’’ | 9.00 | 0.354 | 12.7 | 1/2’’ | 13.8 | 200 | 41.4 | 600 |
| RFSB-005 | 5.00 | 3/16’’ | 11.00 | 0.433 | 25.4 | 1.00’’ | 11.7 | 170 | 35.1 | 509 |
| RFSB-006 | 6.35 | 1/4’’ | 13.20 | 0.519 | 38.1 | 1-1/2’’ | 9.3 | 135 | 27.9 | 405 |
| RFSB-009 | 9.52 | 3/8’’ | 16.60 | 0.654 | 57.15 | 2-1/4’’ | 7.0 | 101 | 21.0 | 305 |
| RFSB-012 | 12.70 | 1/2’’ | 20.30 | 0.799 | 70.00 | 2-3/4’’ | 5.7 | 82 | 17.1 | 248 |
| RFSB-015 | 15.87 | 5/8’’ | 24.50 | 0.965 | 82.55 | 3-1/4’’ | 4.3 | 62 | 12.9 | 187 |
| RFSB-022 | 22.20 | 7/8’’ | 27.90 | 1.099 | 145 | 5-3/4’’ | 3.3 | 47 | 9.9 | 144 |
| RFSB-025 | 25.40 | 1.00’’ | 34.50 | 1.358 | 157 | 6-1/4’’ | 3.0 | 43 | 9.0 | 131 |
| RFSB-031 | 31.75 | 1-1/4’’ | 40.8 | 1.606 | 204 | 8.00’’ | 2.3 | 34 | 6.9 | 100 |
Note
Repeated steam sterilization or long-term exposure to high temperature or high pressure, the wall of hose will eventually become viscous, and it must be replaced at this time.
Disinfect before use.
Pay attention to the selection of joints and clamps. Sharp pagoda-shaped joints and metal clamps may pierce the hose wall and cause the hose to rupture, especially when handling high pressure.
Braided reinforced silicone tube cannot be used for body transplantation and continuous steam application
