Platinum Cured 70A Braid Reinforced Silicone Tubing

Large Image : Platinum Cured 70A Braid Reinforced Silicone Tubing

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Tenchy
Certification:	FDA, ROSH, SGS
Model Number:	TS-MXSB05

Payment & Shipping Terms:

Minimum Order Quantity:	500 meter
Delivery Time:	5-10 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 Meter/Meters per Day

Contact Now

Detailed Product Description

Material:	Silicone Raw Material, Polyster	Temperature:	-60℃~200℃
Application:	Food Processing Equipment, Pharmaceutical & Bio Pharma Industries, Aerospace & Military Industries	Color:	Translucent, White, Red, Black, Etc
Feature:	Environment Friendly, Non-toxic, Tasteless, Safe And Reliable	Hardness:	70 A
Size:	Standard And Custom Size
Highlight:	70A braid reinforced silicone tubing , Platinum Cured rubber silicone tube , 70A rubber silicone tube

Food Grade Silicone Reinforced Hose

Product Description

Polyester braided within the walls of silicone tubing
Reusable — will withstand repeated sterilization
Translucent natural color for visual contact with the flow
Odorless, tasteless, and inert
Excellent weatherability properties — resists U.V., ozone, gases, moisture, and extreme temperatures
Designed for elevated pressure applications
Free of BPA, latex and phthalates; RoHS compliant

Brand Name:	Tenchy
Material:	Silicone raw material, Polyster
Color:	white, red, blue, gray, green, etc
Size:	Customized
Hardness:	70A
Certification:	FDA 21 CFR 177.2600, ROSH, SGS
Temperature:	-60℃~200℃

Specification

Item Code	ID		OD		Min. Bend Radius Inch		Working Pressure		Burst Pressure
Item Code	(mm)	(inch)	(mm)	(inch)	(mm)	(inch)	(Bar)	Psi	(Bar)	(Psi)
RFSB-003	3.18	1/8’’	9.00	0.354	12.7	1/2’’	13.8	200	41.4	600
RFSB-005	5.00	3/16’’	11.00	0.433	25.4	1.00’’	11.7	170	35.1	509
RFSB-006	6.35	1/4’’	13.20	0.519	38.1	1-1/2’’	9.3	135	27.9	405
RFSB-009	9.52	3/8’’	16.60	0.654	57.15	2-1/4’’	7.0	101	21.0	305
RFSB-012	12.70	1/2’’	20.30	0.799	70.00	2-3/4’’	5.7	82	17.1	248
RFSB-015	15.87	5/8’’	24.50	0.965	82.55	3-1/4’’	4.3	62	12.9	187
RFSB-022	22.20	7/8’’	27.90	1.099	145	5-3/4’’	3.3	47	9.9	144
RFSB-025	25.40	1.00’’	34.50	1.358	157	6-1/4’’	3.0	43	9.0	131
RFSB-031	31.75	1-1/4’’	40.8	1.606	204	8.00’’	2.3	34	6.9	100

Application

● Peristaltic pump

● Food and beverage transmission

● Dairy products

● Pharmaceutical

● Cosmetic

● Beverage bottle filling and filling

● Chemical feeding

● Fermentation tank

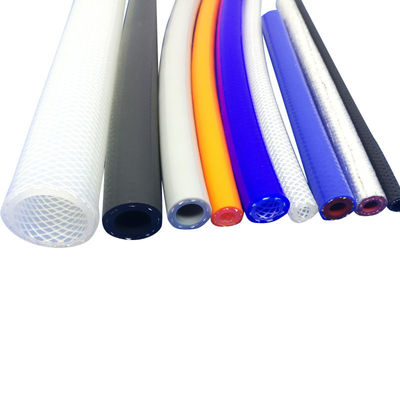

Platinum Cured 70A Braid Reinforced Silicone Tubing 0

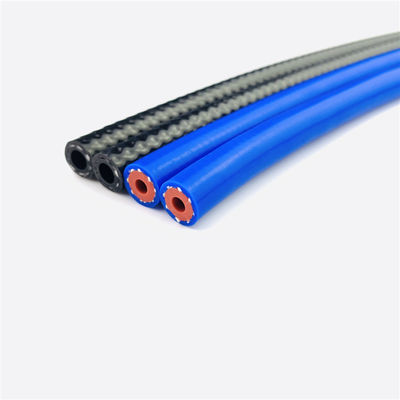

Platinum Cured 70A Braid Reinforced Silicone Tubing 1

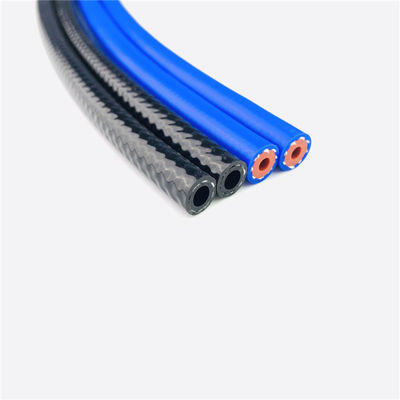

Platinum Cured 70A Braid Reinforced Silicone Tubing 2
