Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Pure Silicone Raw Material | Feature: | Environment Friendly, Non-toxic, Tasteless, Safe And Reliable |
|---|---|---|---|
| Color: | White, Red, Blue, Gray, Green, Etc | Hardness: | 30-80 A |
| High Light: | 8MPA food grade rubber tubing,LFGB transparent rubber tube,8MPA transparent rubber tube |
||

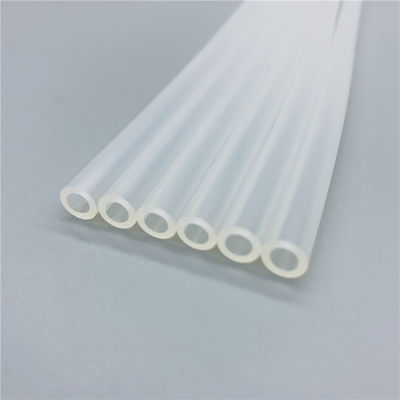

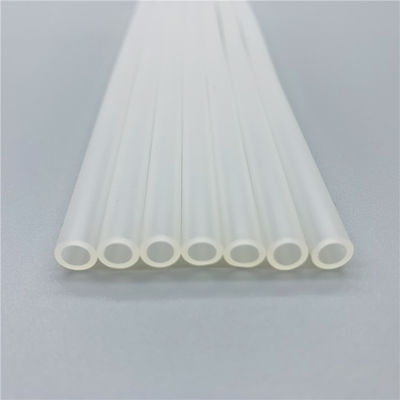

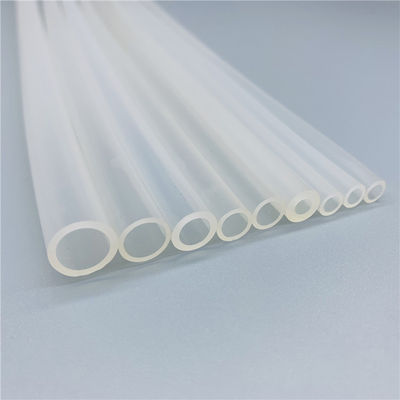

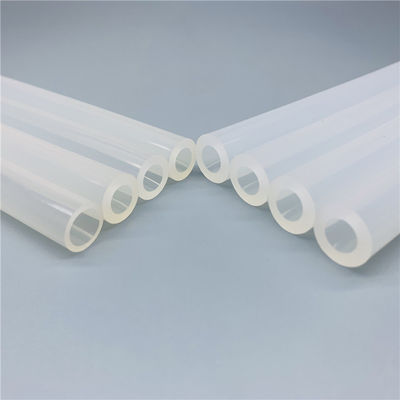

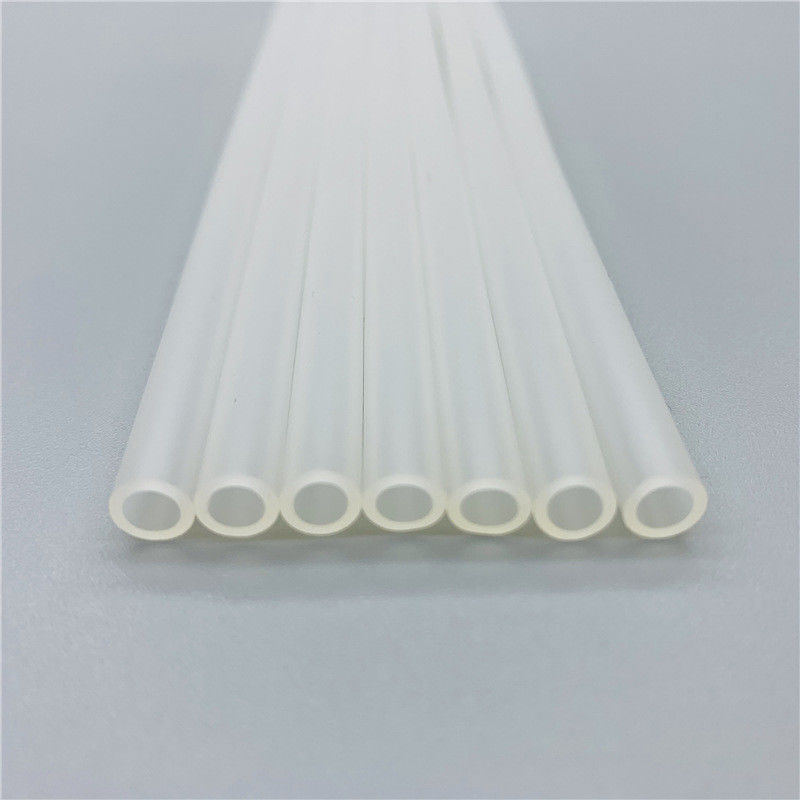

Clear food grade silicone tubing
The silicone tubing can withstand repeated use and sterilization, and this doesn't influence its resilience and shape. All silicone tubes produced by Tenchy are platinum cured, they are odorless, tasteless and non-toxic, suitable for food contact applications.
Main Features
● High transparency, odorless, tasteless and non-toxic, free of BPA
● High Flexibility, High elastic, resistance to kink and no deformation
● No cracking, long lifespan
● High tearing strength and electrical performance
● Meet FDA, RoHS requirements
● No fading or yellowing after long time use or stock
Silicone Hose Basics
Temperature Extremes
■High Temperature Resistance: up to 500F
■Low Temperature Flexibility: to -65F
Weather & Ozone Resistance
■Sunlight
■Ozone
■Atmospheric gases
Typical Uses
■Fluid transfer: ethylene glycol, water...
■Air Transfer: Hot or Cold
Product Description
| Brand Name: | TENCHY |
| Model Number: | TS-FS06 |
| Material: | SILICONE RUBBER |
| Name: | Silicone Tubes |
| Color: | Customized |
| Size: | Customized |
| Feature: | Environment friendly, no smell, non-toxic |
| Temperature: | -60℃ to 240℃ |
| Application: | Food Processing Equipment Dairy fluid handing tubings/hose High Voltage Insulation Aerospace & Military Industries Automotive Electrical Industries Minor Appliances Heater Tubing’s Peristaltic Tubing’s |
| Food Grade Silicone Tubing | ||||||
| Item # | Specification | Tolerance | Available Length per coil (meter) | |||
| ID(mm) | OD(mm) | Thickness (mm) |
for ID | for Thickness | ||
| ST-12 | 1.0 | 2.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-13 | 1.0 | 3.0 | 1.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-1525 | 1.5 | 2.5 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-153 | 1.5 | 3.0 | 0.8 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-23 | 2.0 | 3.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-24 | 2.0 | 4.0 | 1.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-25 | 2.0 | 5.0 | 1.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-26 | 2.0 | 6.0 | 2.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-34 | 3.0 | 4.0 | 0.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-35 | 3.0 | 5.0 | 1.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-36 | 3.0 | 6.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-46 | 4.0 | 6.0 | 1.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-47 | 4.0 | 7.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-48 | 4.0 | 8.0 | 2.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-57 | 5.0 | 7.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-58 | 5.0 | 8.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-59 | 5.0 | 9.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-510 | 5.0 | 10.0 | 2.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-68 | 6.0 | 8.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-69 | 6.0 | 9.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-79 | 7.0 | 9.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-710 | 7.0 | 10.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-711 | 7.0 | 11.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-712 | 7.0 | 12.0 | 2.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-713 | 7.0 | 13.0 | 3.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-810 | 8.0 | 10.0 | 1.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-811 | 8.0 | 11.0 | 1.5 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-812 | 8.0 | 12.0 | 2.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-814 | 8.0 | 14.0 | 3.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-912 | 9.0 | 12.0 | 1.5 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-913 | 9.0 | 13.0 | 2.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1012 | 10.0 | 12.0 | 1.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1013 | 10.0 | 13.0 | 1.5 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1014 | 10.0 | 14.0 | 2.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1016 | 10.0 | 16.0 | 3.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1214 | 12.0 | 14.0 | 1.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1216 | 12.0 | 16.0 | 2.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1218 | 12.0 | 18.0 | 3.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1317 | 13.0 | 17.0 | 2.0 | ±0.2 | ±0.15 | 30, 50 |
| ST-1318 | 13.0 | 18.0 | 2.5 | ±0.2 | ±0.15 | 30, 50 |
| ST-1420 | 14.0 | 20.0 | 3.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1620 | 16.0 | 20.0 | 2.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1621 | 16.0 | 21.0 | 2.5 | ±0.25 | ±0.15 | 30, 50 |
| ST-1622 | 16.0 | 22.0 | 3.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1623 | 16.0 | 23.0 | 3.5 | ±0.25 | ±0.15 | 30, 50 |
| ST-1722 | 17.0 | 22.0 | 2.5 | ±0.3 | ±0.15 | 30, 50 |
| ST-1824 | 18.0 | 24.0 | 3.0 | ±0.3 | ±0.15 | 30, 50 |
| ST-1925 | 19.0 | 25.0 | 3.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2024 | 20.0 | 24.0 | 2.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2025 | 20.0 | 25.0 | 2.5 | ±0.4 | ±0.20 | 30, 50 |
| ST-2026 | 20.0 | 26.0 | 3.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2226 | 22.0 | 26.0 | 2.0 | ±0.4 | ±0.2 | 30, 50 |
| ST-2530 | 25.0 | 30.0 | 2.5 | ±0.6 | ±0.2 | 30, 50 |
| ST-2531 | 25.0 | 31.0 | 3.0 | ±0.6 | ±0.2 | 30, 50 |
| ST-3038 | 30.0 | 38.0 | 4.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3040 | 30.0 | 40.0 | 5.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3238 | 32.0 | 38.0 | 3.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3240 | 32.0 | 40.0 | 4.0 | ±0.6 | ±0.4 | 30, 50 |
| ST-3545 | 35.0 | 45.0 | 5.0 | ±0.6 | ±0.4 | 30, 50 |
| ST-3844 | 38.0 | 44.0 | 3.0 | ±0.6 | ±0.4 | 30, 50 |
