Product Details:
Payment & Shipping Terms:
|
| Product Name: | Polyster Braided Silicone Hose | Color: | Translucent, White, Red, Black,etc |
|---|---|---|---|
| Material: | Silicone Raw Material+Polyster | ID Range: | φ3-50mm |
| Feature: | Environment Friendly, Non-toxic, Odourless, Safe And Reliable | Application: | Beverageand Food Filling Lines, Pharmacy Transfering, Chemical Feed Lines |
| High Light: | 60A high temp braided hose,60A high pressure silicone tubing,odourless high pressure silicone tubing high pressure silicone tubing |
||
Customized Silicone Rubber Reinforced Tubing

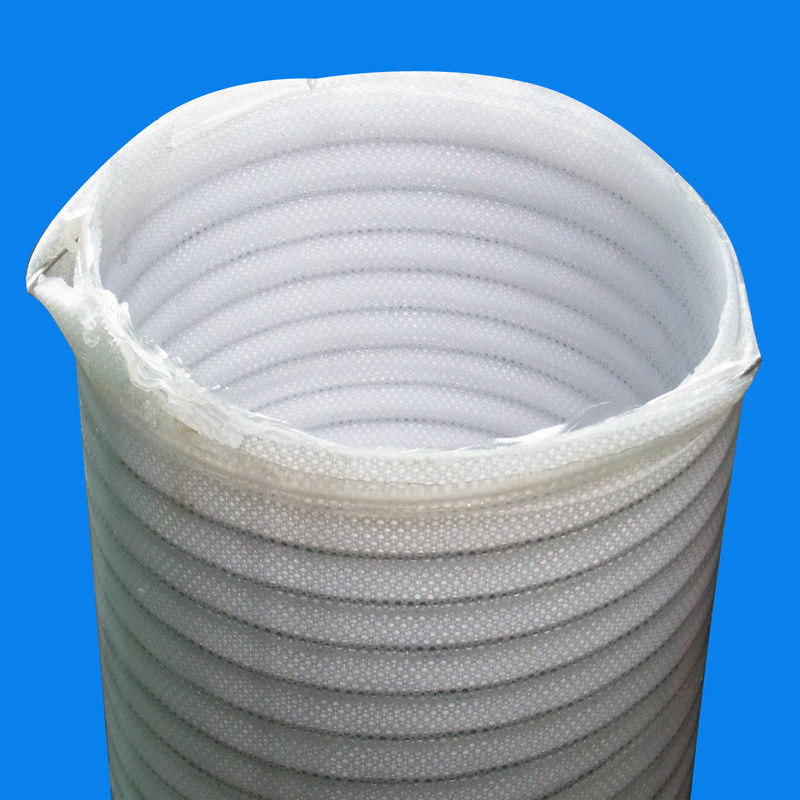

The silicone steel wire hose is made of high purity silicone material and reinforced by 304/316L stainless steel, which has high compression and high vacuum resistance.
The inner tube of the steel wire tube is made of platinum cured high-purity silicone material, with a hardness of 70A. In the middle layer, the stainess steel wire prop up the wall and resist the negative pressure
Product Description
| Brand Name: | Tenchy |
| Material: | Silicone raw material, Polyster |
| Color: | white, red, blue, etc |
| Size: | Customized |
| Hardness: | 70A |
| Certification: | FDA, ROSH, SGS |
| Feature: | Odorless, tasteless, and inert |
| Temperature: | -60℃~200℃ |
| Applications | Automotive Electrical Industries Minor Appliances Heater Tubing’s Autoclave, man-way, and oven gaskets Brewery Transfer Silicone Tubing |
Specification
| Item Code | ID | Thickness | OD |
Min. Bend Radius |
Working Pressure | Burst Pressure | Vacuum | ||||||
| (mm) | (inch) | (mm) | (mm) | (inch) | (mm) | (inch) | (Bar) | Psi | (Bar) | (Psi) | (Bar) | (Psi) | |
| RFSV-003 | 12.7 | 1/2’’ | 5.20 | 23.1 | 0.91 | 39.0 | 9.9 | 144 | 29.8 | 433 |
0.91 |
13.23 |
|
| RFSV-005 | 19.0 | 3/4’’ | 5.20 | 29.4 | 1.16 | 54.0 | 8.3 | 120 | 24.8 | 359 | |||
| RFSV-006 | 25.4 | 1.00’’ | 5.20 | 35.8 | 1.41 | 68.0 | 7.4 | 107 | 22.2 | 321 | |||
| RFSV-009 | 38.1 | 1.50’’ | 5.20 | 48.5 | 1.91 | 112.0 | 5.7 | 83 | 17.2 | 250 | |||
| RFSV-012 | 50.8 | 2.00’’ | 5.20 | 61.2 | 2.41 | 144.0 | 4.6 | 67 | 13.8 | 200 | |||
| RFSV-015 | 63.5 | 2.50’’ | 5.20 | 73.9 | 2.91 | 181.0 | 3.8 | 55 | 11.3 | 164 | |||
| RFSV-022 | 76.2 | 3.0’’ | 5.20 | 86.6 | 3.41 | 232.0 | 3.0 | 44 | 9.1 | 132 | |||
| RFSV-025 | 101.6 | 4.0’’ | 5.20 | 112.0 | 4.41 | 367.0 | 1.9 | 27 | 5.6 | 82 | |||
The sanitary silicone hose can effectively prevent the growth of bacteria, and the tough polyester fabric with steel wire greatly increase the working pressure and help maintain the flow of fluid. The steel wire silicone hose has good flexibility, durability, chemical resistance and heat resistance, and the spiral steel wire is grounded to discharge static electricity, It is the ideal hose for pharmacy, biotechnology, and food&beverage industry.

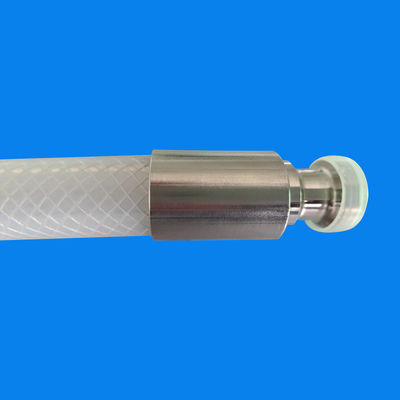

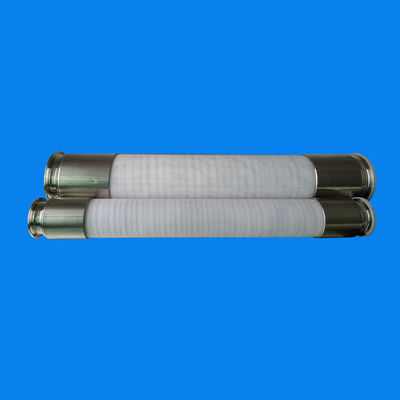

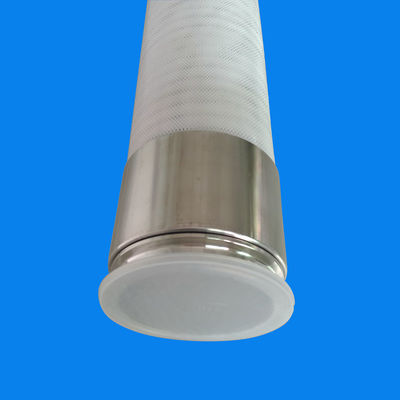

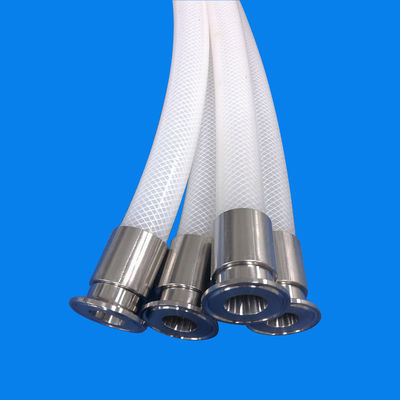

The hose clamps is made of 316L stainless steel, and is crimped and molded according to the requirements of the SZR (no dead angle and no residue at the connection) standard. We equip customers with SMS, DIN, flange and sanitary chuck series of joints, and we can also customize other types of joints according to customer requirements.
