Product Details:
Payment & Shipping Terms:
|
| Products: | Silicone Rubber Gasket | Model No: | TS-CSG10 |
|---|---|---|---|
| Place Of Origin: | Shenzhen, China | OEM: | OEM Service Available |
| Hardness: | 30-80 Shore A | Material: | 100% Silicone |
| Size: | Customized | Feature: | Heat Resistant, UV Resistant, Chemical Resistant, Food Grade |
| Color: | Black, White, Rust Red And Other | ||
| High Light: | 30A sealing ring gasket,LFGB anti aging sealing ring gasket,30A round flat rubber gasket |
||

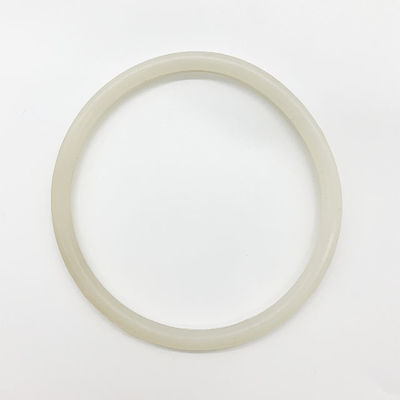

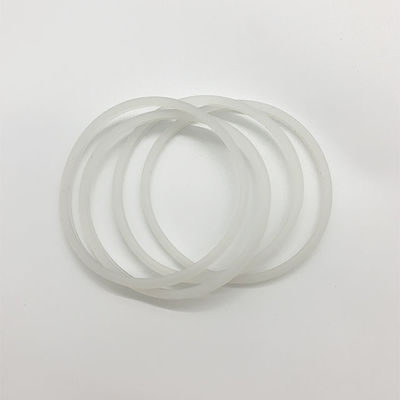

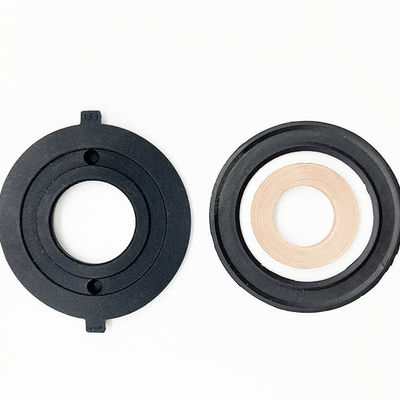

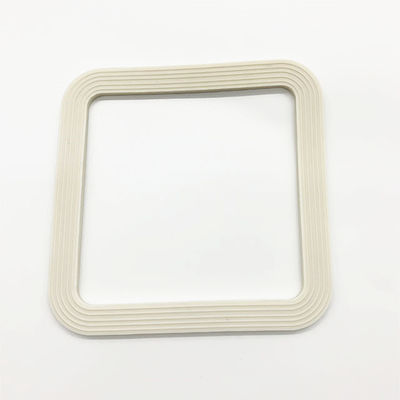

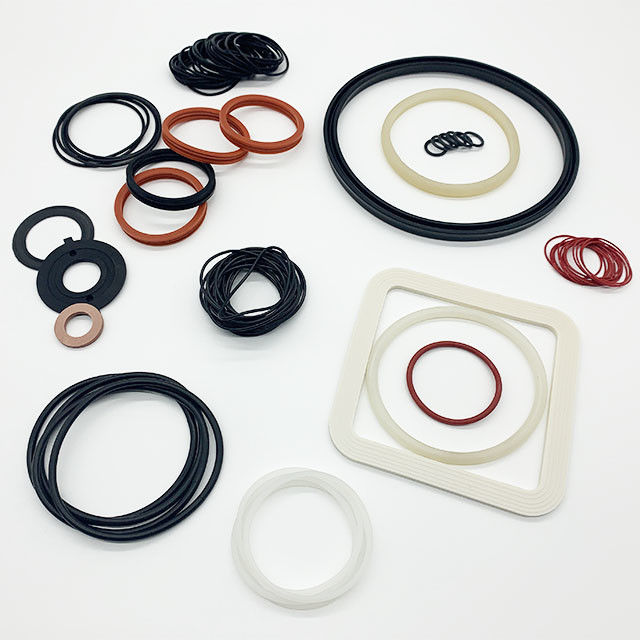

Custom Flat Round Silicone Rubber Gasket
Tenchy can manufacture silicone seals/gaskets according to customer's drawings and samples, and we can supply from a comprehensive proprietary range, or we can custom design molding solutions to meet your special requirements.
Main features of molded silicone seals/gasket
1. Food grade, ordorless and inert
2. Wide range of working temperature, from -60℃ low to 200℃ high temperature, the physical properties remain stable
3. Anti-aging, anti-corrosion, not yellowing
4. Weather resistance, Resistant to ozone and UV
Product benefits
Applications
| Product Name | Silicone Seal Gasket |
| Material | 100% Silicone raw material |
| Processing Method | Press Moulding |
| Feature | Heat Resistant, Chemical Resistant, Weather-Proof, Water-proof, Ageing Resistant |
| Tolerance | ±0.05mm |
| Application | Mechanical, automobile, electrical appliance, industrial, construction, or special purpose |
| Polymer | Silicone Rubber |
| Color | Natural, Black, White ect |
| Density |
1.14 g/cm³
|
| Tensile Strength | >9.5Mpa |
| Elongation @ Breakage |
>570%
|
| Tear Strength |
25kN/m
|
|
Linear Shrinkage
|
3.3-3.7
|
|
Rebound
Resiliance
|
>50%
|
|
Temperature Range
|
-60°C to +220°C
|
| For 300℃ Temperature Resistant Special Silicone is Available | |
For assembly as a gasket dressing
1. Remove cap, puncture tube or cartridge seal and attach extension nozzle
2. Apply a thin film of silicone to one surface to be sealed.
3. Place the pre-cut gasket onto silicone film.
4. Apply a second thin to pre-cut gasket surface.
5. Remove any excess and assemble parts immediately.
Note: Product not recommended for use as a cylinder head gasket or head gasket sealant
