Product Details:
Payment & Shipping Terms:
|
| Product: | Viton Seal Strip | Material: | Viton Raw Material |
|---|---|---|---|
| Hardness: | 70A | Size: | Standard Size And Customized Size |
| Color: | Green, Brown, Black | Place Of Origin: | China |
| High Light: | 70A Extruded Sealing Silicone Tube,FKM Sealing Silicone Tube,10Mpa Sealing Silicone Tube |
||

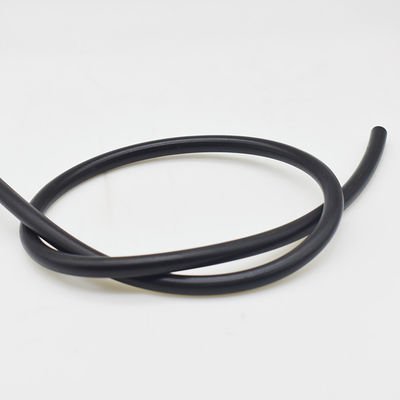

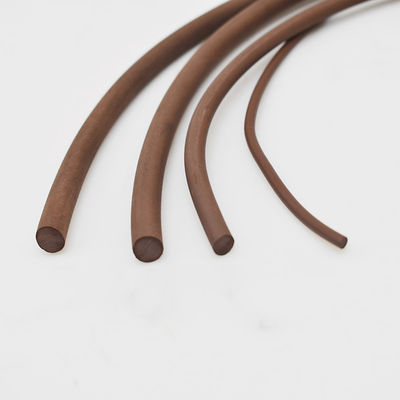

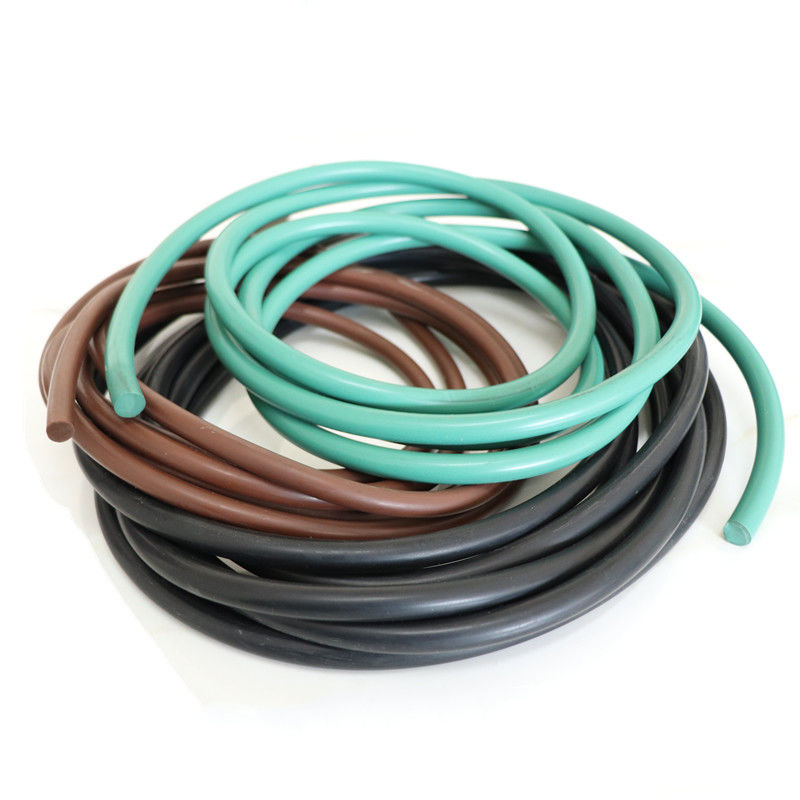

Viton/FKM tube Extruded Viton Silicone Profile
Tenchy Viton/FKM Tube is made of 100% pure viton material,which is a high performance synthetic rubber. It has good mechanical strength and has high temperature resistance and chemical resistance to oil, fuels, lubricants and most mineral acids. It is completely UV stabilised making it highly resistant to ozone effects and extreme weather conditions.
Viton Also resistant to many aliphatic and aromatic hydrocarbons such as carbon tetrachloride, benzene, toluene, and xylene.
All Viton tube formulations are produced with 100% FKM and are matte black in color. Viton tube contains no regrind material nor blends of other elastomers.
Extruded Viton(FKM) profile is widely used in transportation, radio motors, instrumentation industry, and aviation industry applications. It has good high temperature resistance, good physiological inertia, and can go through the requirements of disinfection.
Physical properties:
| Polymer | Viton |
| Colour | Black |
| Density | 1.95±0.1g/cm³ |
| Hardness | 70 Shore A |
| Tensile Strength | ≥10Mpa |
| Elongation @ Break | >175% |
| Brittle Temp | -31℃(-25℉) |
| Max Operating Temp | 200 ℃(392 ℉) |
| Fire resistant | / |
> Automotive Fluids
> Peristaltic Pumps
> Lubrication
> Fuel & Oil applications
> Seals & 'O'-Rings
> Appliances
> Chemical Lines
> Cable coating
