| Color: | Clear Or Customized | Temperature: | -40℃ To 180℃ |
|---|---|---|---|
| Feature: | Platinum Cured For The Highest Degree Of Purity | Material: | 100% Silicone |
| Hardness: | 70±5A | Size: | Standard Size And Customized Size |
| High Light: | Silicone SS316L Wire Reinforced Hose,Anti Kinking Wire Reinforced Hose,70A Hardness Wire Reinforced Hose |
||
High compression 304/316L stainless steel Wire Reinforced Hose

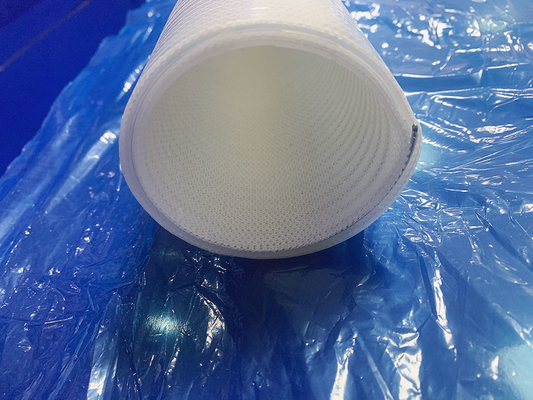

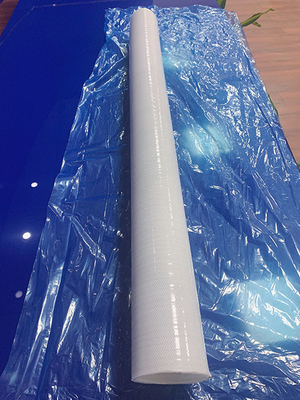

Silicone SS Wire Reinforced Hose
● The silicone steel wire hose is made of high purity silicone material and reinforced by 304/316L stainless steel, which has high compression and high vacuum resistance.
● The inner tube of the steel wire tube is made of platinum cured high-purity silicone material, with a hardness of 70A. In the middle layer, the stainess steel wire prop up the wall and resist the negative pressure.
Main Features
Basic information
| Manufacturing technique | silicone extrusion + steel wire and fabric weaving |
| Fabric | Four layers of polyester fabric |
| Steel wire | single-layer 304/316 stainless steel wire,wire interval 6mm |
| Inner wall | transparent and smooth |
| Outer wall | transparent and smooth(other colors available) |
| Color | Clear or customized |
| Diameter range | 1.0-102.0mm |
| Diameter tolerance | ±0.5mm |
| Standard length | 6 meters/bag, can be customized under 6 meters |
| Temperature range | -40°C~220°C |
| Sample period | 1-2 days(5-8 days for customized tubing) |
| Daily capacity | 1000 meters |
| MOQ | 30 meteres |
Physical Properties
| Hardness Liner | 70±5A |
| Hardness Cover | 60±5A |
| Tensile strength | >8.5MPa |
| Elongation at break | >320% |
| Tear resistance (tear strength) | >25KN/m |
| Britle temperature | -40°C (-40 ℉) |
| Maximum Operating Temperature | 180°C (356 ℉) |
Applications
Mainly used in special environment operations, used in the connection of some food and medical equipment, as well as biotechnology, cosmetics, food, dairy products, can be used for liquid medicine delivery, vaccines, pharmaceutical preparations and other industries.
Specification
| Item Code | ID | Thickness | OD |
Min. Bend Radius |
Working Pressure | Burst Pressure | Vacuum | ||||||
| (mm) | (inch) | (mm) | (mm) | (inch) | (mm) | (inch) | (Bar) | Psi | (Bar) | (Psi) | (Bar) | (Psi) | |
| RFSV-003 | 12.7 | 1/2’’ | 5.20 | 23.1 | 0.91 | 39.0 | 9.9 | 144 | 29.8 | 433 |
0.91 |
13.23 |
|
| RFSV-005 | 19.0 | 3/4’’ | 5.20 | 29.4 | 1.16 | 54.0 | 8.3 | 120 | 24.8 | 359 | |||
| RFSV-006 | 25.4 | 1.00’’ | 5.20 | 35.8 | 1.41 | 68.0 | 7.4 | 107 | 22.2 | 321 | |||
| RFSV-009 | 38.1 | 1.50’’ | 5.20 | 48.5 | 1.91 | 112.0 | 5.7 | 83 | 17.2 | 250 | |||
| RFSV-012 | 50.8 | 2.00’’ | 5.20 | 61.2 | 2.41 | 144.0 | 4.6 | 67 | 13.8 | 200 | |||
| RFSV-015 | 63.5 | 2.50’’ | 5.20 | 73.9 | 2.91 | 181.0 | 3.8 | 55 | 11.3 | 164 | |||
| RFSV-022 | 76.2 | 3.0’’ | 5.20 | 86.6 | 3.41 | 232.0 | 3.0 | 44 | 9.1 | 132 | |||
| RFSV-025 | 101.6 | 4.0’’ | 5.20 | 112.0 | 4.41 | 367.0 | 1.9 | 27 | 5.6 | 82 | |||

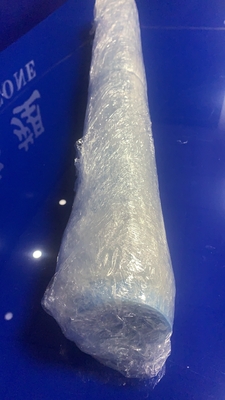

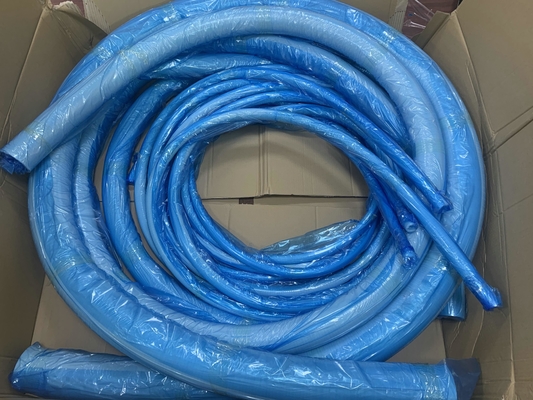

Packaging
Max Length for RFSV: Max 6 meters for all of sizes
We have a professional cutting machine that can cut various products with shorter lengths according to customer requirements. Then use OPP bags and standard cartons.
