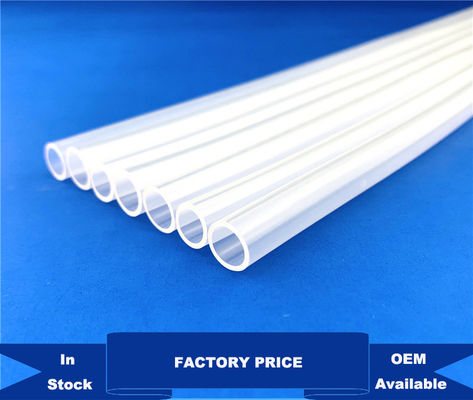

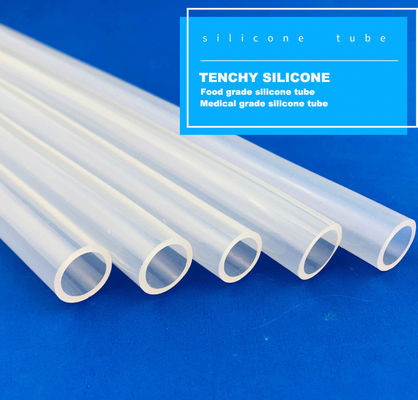

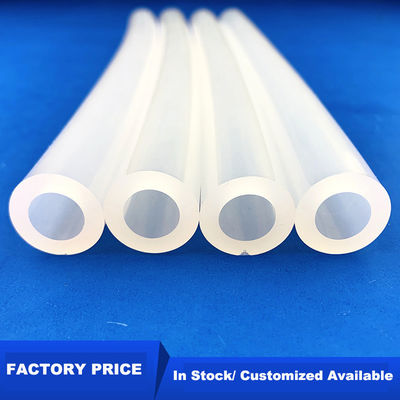

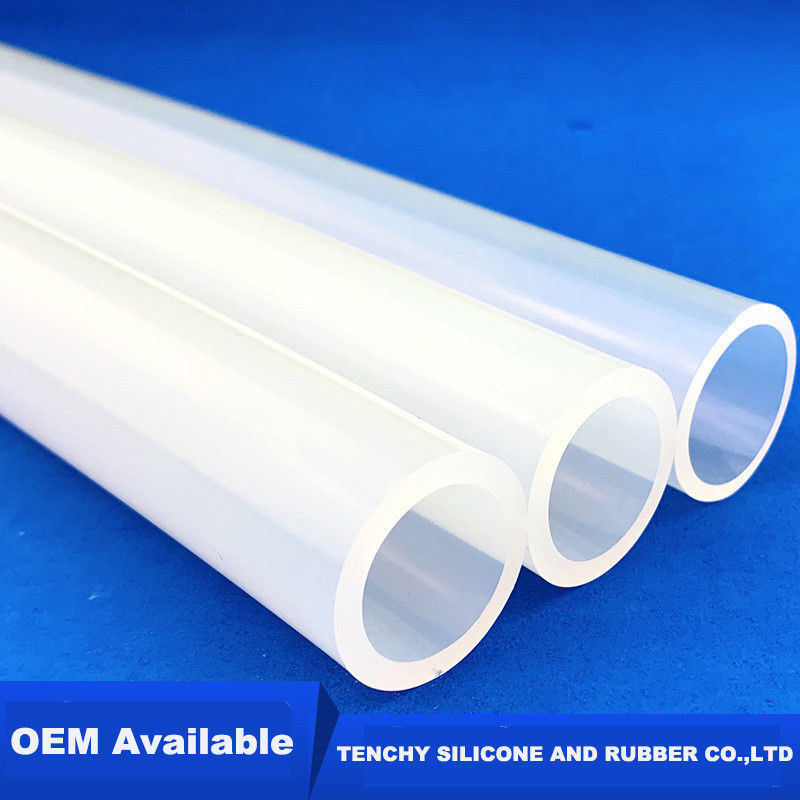

High Pressure Resistance Platinum Cured Transparent Rubber Tube 6MPA for milking

Large Image : High Pressure Resistance Platinum Cured Transparent Rubber Tube 6MPA for milking

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Tenchy
Certification:	FDA, LFGB, UL, ROSH, SGS
Model Number:	TS-HT02

Payment & Shipping Terms:

Minimum Order Quantity:	200 meters
Packaging Details:	30 meters, 50 meters per roll by customized OPP bag and Carton
Delivery Time:	5-10 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 Meter/Meters per Day

Contact Now

Detailed Product Description

Material:	100% Pure Silicone Raw Material	Feature:	Environment Friendly, Non-toxic, Tasteless, Safe And Reliable
Temperature:	-60℃~300℃	Color:	White, Red, Blue, Gray, Green, Etc
Hardness:	30-80 A	Size:	Customized
High Light:	Platinum Cured heat resistant silicone hose , 6MPA heat resistant silicone hose , Platinum Cured transparent rubber tube

Custom Platinum Cured Heat Resistant Silicone Tubing

Product Description

Brand Name:	Tenchy
Material:	100% pure silicone raw material
Name:	Silicone Tubing
Color:	white, red, blue, gray, green, etc
Hardness:	30-80A
Certification:	FDA 21 CFR 177.2600
Feature:	Aging resistant, tasteless, Safe and reliable
Temperature:	-60℃~300℃
Application:	Food Processing Equipment Dairy fluid handing tubings/hose High Voltage Insulation Aerospace & Military Industries Automotive Electrical Industries

Free of BPA, latex and phthalates; RoHS compliant
Able to resist extreme temperatureRange: -40°C~200°C
OD range:0.5-100mm
Resilient, stretchable and resistant to compression set
Natural translucent color makes it easier to visually confirm flow
Excellent resistance to UV, oxygen, ozone, gases and moisture
Odorless, tasteless and inert

Food Grade Silicone Tubing
Item #	Specification			Tolerance		Available Length per coil (meter)
Item #	ID(mm)	OD(mm)	Thickness (mm)	for ID	for Thickness	Available Length per coil (meter)
ST-12	1.0	2.0	0.5	±0.10	±0.05	30, 50, 100
ST-13	1.0	3.0	1.0	±0.10	±0.05	30, 50, 100
ST-1525	1.5	2.5	0.5	±0.10	±0.05	30, 50, 100
ST-153	1.5	3.0	0.8	±0.10	±0.05	30, 50, 100
ST-23	2.0	3.0	0.5	±0.10	±0.05	30, 50, 100
ST-24	2.0	4.0	1.0	±0.10	±0.05	30, 50, 100
ST-25	2.0	5.0	1.5	±0.10	±0.05	30, 50, 100
ST-26	2.0	6.0	2.0	±0.10	±0.05	30, 50, 100
ST-34	3.0	4.0	0.5	±0.10	±0.10	30, 50, 100
ST-35	3.0	5.0	1.0	±0.10	±0.10	30, 50, 100
ST-36	3.0	6.0	1.5	±0.10	±0.10	30, 50, 100
ST-46	4.0	6.0	1.0	±0.10	±0.10	30, 50, 100
ST-47	4.0	7.0	1.5	±0.10	±0.10	30, 50, 100
ST-48	4.0	8.0	2.0	±0.10	±0.10	30, 50, 100
ST-57	5.0	7.0	1.0	±0.15	±0.10	30, 50, 100
ST-58	5.0	8.0	1.5	±0.15	±0.10	30, 50, 100
ST-59	5.0	9.0	2.0	±0.15	±0.10	30, 50, 100
ST-510	5.0	10.0	2.5	±0.15	±0.10	30, 50, 100
ST-68	6.0	8.0	1.0	±0.15	±0.10	30, 50, 100
ST-69	6.0	9.0	1.5	±0.15	±0.10	30, 50, 100
ST-79	7.0	9.0	1.0	±0.15	±0.10	30, 50, 100
ST-710	7.0	10.0	1.5	±0.15	±0.10	30, 50, 100
ST-711	7.0	11.0	2.0	±0.15	±0.10	30, 50, 100
ST-712	7.0	12.0	2.5	±0.15	±0.10	30, 50, 100
ST-713	7.0	13.0	3.0	±0.15	±0.10	30, 50, 100
ST-810	8.0	10.0	1.0	±0.20	±0.10	30, 50, 100
ST-811	8.0	11.0	1.5	±0.20	±0.10	30, 50, 100
ST-812	8.0	12.0	2.0	±0.20	±0.10	30, 50, 100
ST-814	8.0	14.0	3.0	±0.20	±0.10	30, 50, 100
ST-912	9.0	12.0	1.5	±0.2	±0.10	30, 50, 100
ST-913	9.0	13.0	2.0	±0.2	±0.10	30, 50, 100
ST-1012	10.0	12.0	1.0	±0.2	±0.10	30, 50, 100
ST-1013	10.0	13.0	1.5	±0.2	±0.10	30, 50, 100
ST-1014	10.0	14.0	2.0	±0.2	±0.10	30, 50, 100
ST-1016	10.0	16.0	3.0	±0.2	±0.10	30, 50, 100
ST-1214	12.0	14.0	1.0	±0.2	±0.10	30, 50
ST-1216	12.0	16.0	2.0	±0.2	±0.10	30, 50
ST-1218	12.0	18.0	3.0	±0.2	±0.10	30, 50
ST-1317	13.0	17.0	2.0	±0.2	±0.15	30, 50
ST-1318	13.0	18.0	2.5	±0.2	±0.15	30, 50
ST-1420	14.0	20.0	3.0	±0.25	±0.15	30, 50
ST-1620	16.0	20.0	2.0	±0.25	±0.15	30, 50
ST-1621	16.0	21.0	2.5	±0.25	±0.15	30, 50
ST-1622	16.0	22.0	3.0	±0.25	±0.15	30, 50
ST-1623	16.0	23.0	3.5	±0.25	±0.15	30, 50
ST-1722	17.0	22.0	2.5	±0.3	±0.15	30, 50
ST-1824	18.0	24.0	3.0	±0.3	±0.15	30, 50
ST-1925	19.0	25.0	3.0	±0.4	±0.20	30, 50
ST-2024	20.0	24.0	2.0	±0.4	±0.20	30, 50
ST-2025	20.0	25.0	2.5	±0.4	±0.20	30, 50
ST-2026	20.0	26.0	3.0	±0.4	±0.20	30, 50
ST-2226	22.0	26.0	2.0	±0.4	±0.2	30, 50
ST-2530	25.0	30.0	2.5	±0.6	±0.2	30, 50
ST-2531	25.0	31.0	3.0	±0.6	±0.2	30, 50
ST-3038	30.0	38.0	4.0	±0.6	±0.3	30, 50
ST-3040	30.0	40.0	5.0	±0.6	±0.3	30, 50
ST-3238	32.0	38.0	3.0	±0.6	±0.3	30, 50
ST-3240	32.0	40.0	4.0	±0.6	±0.4	30, 50
ST-3545	35.0	45.0	5.0	±0.6	±0.4	30, 50
ST-3844	38.0	44.0	3.0	±0.6	±0.4	30, 50
