Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Pure Silicone Raw Material | Size: | Customized |
|---|---|---|---|
| Temperature: | -60℃~240℃ | Feature: | Environment Friendly, Non-toxic, Tasteless, Safe And Reliable |
| Hardness: | 40-80 Shore A | Color: | White, Red, Blue, Gray, Green, Etc |
| High Light: | LFGB heat resistant silicone tubing,50A soft silicone tubing,50A heat resistant silicone tubing |
||

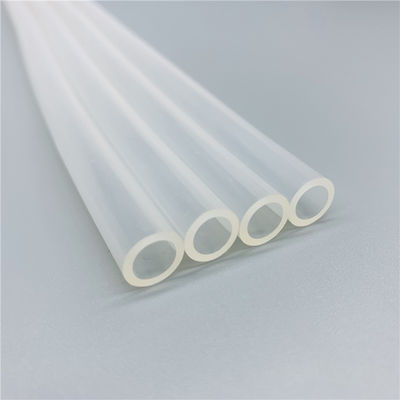

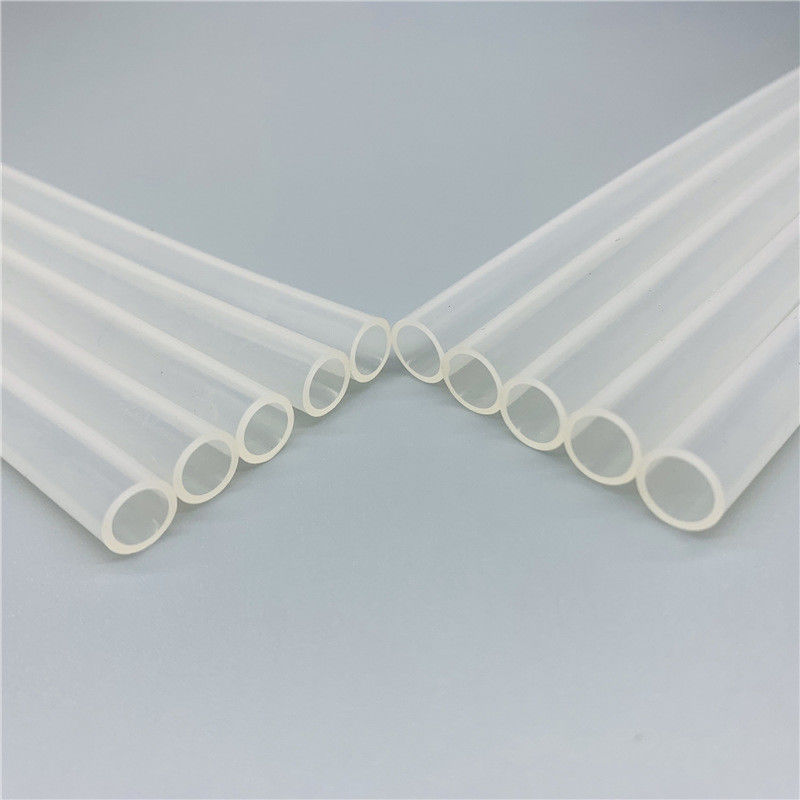

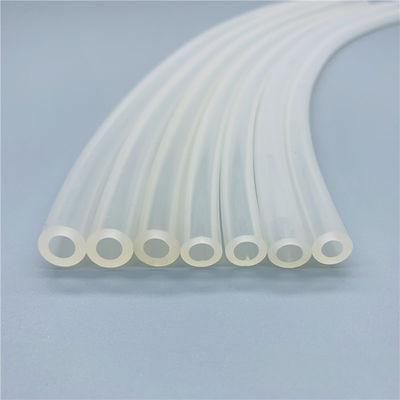

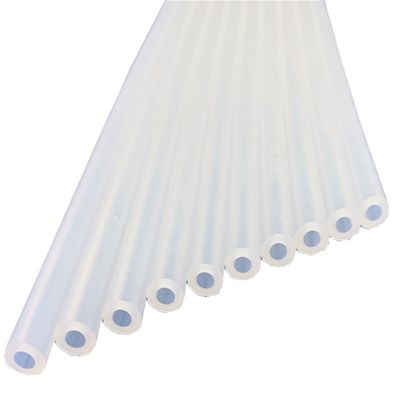

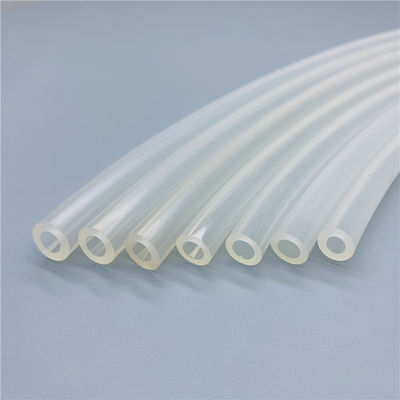

Platinum Cured Clear silicone tubing
Silicone Hose Performance
- Resistance to temperature extremes -60℃~240℃ and even up to 350℃.
- Long service life compared to EPDM and organic materials.
- Weather resistant to; harsh sunlight & dry conditions, ozone, and rain water.
- High resistance to water absorption.
- Resistance to compression set& deformation, esp. at high & low temps.
- No outgasing since it doesn't contain sulfur or acid producing chemicals.
- Will not cause staining, corrosion, & won't support mold or bacteria growth.
- Offered in attractive color options and with a glossy or matte finish.
- Cost effective, complex shapes can replace expensive metal tubes.
- Excellent physical properties; good burst strength, vacuum and kink resistance.
- Cost effective compared to metal tubes, a single hose eliminates multiple parts.
- Complex shapes are possible with offsets, spigots, multiple diameters, etc.
Product Description
Construction:
✔ Any colors are available
✔ 100% Food grade silicone raw material
✔ No taste, no toxic, eco-friendly.
✔ High temperature resistance, aging, solid
✔ For industrial use car use
✔ Various colors and sizes are available
| Food Grade Silicone Tubing | ||||||
| Item # | Specification | Tolerance | Available Length per coil (meter) | |||
| ID(mm) | OD(mm) | Thickness (mm) |
for ID | for Thickness | ||
| ST-12 | 1.0 | 2.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-13 | 1.0 | 3.0 | 1.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-1525 | 1.5 | 2.5 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-153 | 1.5 | 3.0 | 0.8 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-23 | 2.0 | 3.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-24 | 2.0 | 4.0 | 1.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-25 | 2.0 | 5.0 | 1.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-26 | 2.0 | 6.0 | 2.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-34 | 3.0 | 4.0 | 0.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-35 | 3.0 | 5.0 | 1.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-36 | 3.0 | 6.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-46 | 4.0 | 6.0 | 1.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-47 | 4.0 | 7.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-48 | 4.0 | 8.0 | 2.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-57 | 5.0 | 7.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-58 | 5.0 | 8.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-59 | 5.0 | 9.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-510 | 5.0 | 10.0 | 2.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-68 | 6.0 | 8.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-69 | 6.0 | 9.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-79 | 7.0 | 9.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-710 | 7.0 | 10.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-711 | 7.0 | 11.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-712 | 7.0 | 12.0 | 2.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-713 | 7.0 | 13.0 | 3.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-810 | 8.0 | 10.0 | 1.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-811 | 8.0 | 11.0 | 1.5 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-812 | 8.0 | 12.0 | 2.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-814 | 8.0 | 14.0 | 3.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-912 | 9.0 | 12.0 | 1.5 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-913 | 9.0 | 13.0 | 2.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1012 | 10.0 | 12.0 | 1.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1013 | 10.0 | 13.0 | 1.5 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1014 | 10.0 | 14.0 | 2.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1016 | 10.0 | 16.0 | 3.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1214 | 12.0 | 14.0 | 1.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1216 | 12.0 | 16.0 | 2.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1218 | 12.0 | 18.0 | 3.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1317 | 13.0 | 17.0 | 2.0 | ±0.2 | ±0.15 | 30, 50 |
| ST-1318 | 13.0 | 18.0 | 2.5 | ±0.2 | ±0.15 | 30, 50 |
| ST-1420 | 14.0 | 20.0 | 3.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1620 | 16.0 | 20.0 | 2.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1621 | 16.0 | 21.0 | 2.5 | ±0.25 | ±0.15 | 30, 50 |
| ST-1622 | 16.0 | 22.0 | 3.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1623 | 16.0 | 23.0 | 3.5 | ±0.25 | ±0.15 | 30, 50 |
| ST-1722 | 17.0 | 22.0 | 2.5 | ±0.3 | ±0.15 | 30, 50 |
| ST-1824 | 18.0 | 24.0 | 3.0 | ±0.3 | ±0.15 | 30, 50 |
| ST-1925 | 19.0 | 25.0 | 3.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2024 | 20.0 | 24.0 | 2.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2025 | 20.0 | 25.0 | 2.5 | ±0.4 | ±0.20 | 30, 50 |
| ST-2026 | 20.0 | 26.0 | 3.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2226 | 22.0 | 26.0 | 2.0 | ±0.4 | ±0.2 | 30, 50 |
| ST-2530 | 25.0 | 30.0 | 2.5 | ±0.6 | ±0.2 | 30, 50 |
| ST-2531 | 25.0 | 31.0 | 3.0 | ±0.6 | ±0.2 | 30, 50 |
| ST-3038 | 30.0 | 38.0 | 4.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3040 | 30.0 | 40.0 | 5.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3238 | 32.0 | 38.0 | 3.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3240 | 32.0 | 40.0 | 4.0 | ±0.6 | ±0.4 | 30, 50 |
| ST-3545 | 35.0 | 45.0 | 5.0 | ±0.6 | ±0.4 | 30, 50 |
| ST-3844 | 38.0 | 44.0 | 3.0 | ±0.6 | ±0.4 | 30, 50 |
