60 Shore A Silicone Seal Gasket

China Shenzhen Tenchy Silicone&Rubber Co.,Ltd certification
China Shenzhen Tenchy Silicone&Rubber Co.,Ltd certification
I'm Online Chat Now

60 Shore A Silicone Seal Gasket

60 Shore A Silicone Seal Gasket
60 Shore A Silicone Seal Gasket 60 Shore A Silicone Seal Gasket

Large Image :  60 Shore A Silicone Seal Gasket

Product Details:
Place of Origin: China
Brand Name: Tenchy
Certification: FDA, LFGB, UL, ROSH, SGS
Model Number: TS-CSG06
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Nigotiated
Packaging Details: Opp plastic bags and Standard carton.
Delivery Time: 5-10 work days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 10,000pcs per day
Detailed Product Description
Products: Silicone Rubber Gasket Brand: Tenchy
Model No: TS-CSG06 Size: Customized
Material: 100% Silicone Application: Industry Sealing
Certifications: RoHs, Reach, FDA, LFGB, NSF Color: Black, White, Rust Red And Other
OEM: OEM Service Available Place Of Origin: Shenzhen, China
Hardness: 30-90 Shore A Feature: Heat Resistant, UV Resistant, Chemical Resistant, Food Grade
High Light:

ROHS E Shape o ring gasket seal

,

60 shore A o ring gasket seal

,

60 shore A silicone sealing gasket

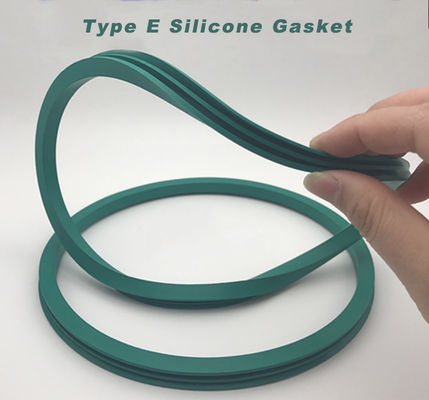

E Shape Silicone Gasket O Rings, molded O rings, Used in Auto parts for Sealing





Product Description




Product Name Silicone Seal Gasket
Material 100% Silicone rubber material
Processing Method Press Moulding
Feature Weather-Proof, Water-proof, Ageing Resistant
Tolerance ±0.05mm
Quality Standards RoHs, Reach, NSF, FDA, LFGB
Application Mechanical, automobile, electrical appliance, industrial, construction, or special purpose
Product Safety Environmentally friendly, Oil resistance





How to INSTALLATION:



• Break all sharp edges
• Create a 15 to 20 degree lead-in chamfer
• Lubricate O-Ring during installation
• Use correct sized O-Ring



Technical Information


Polymer

Silicone Rubber

Color

Natural, Black, White ect

Density

1.14g/cm³

Hardness

30-90 Shore A

Tensile Strength

>9.5Mpa

Elongation@Breakage

>600%

Tear Strength

 25kN/m

Linear Shrinkage

3.3-3.7

Rebound Resiliance

>50%

Temperature Range

-60°C to +220°C

For 300℃ Temperature Resistant Special Silicone is Available





60 Shore A Silicone Seal Gasket 0

60 Shore A Silicone Seal Gasket 1

60 Shore A Silicone Seal Gasket 2



60 Shore A Silicone Seal Gasket 3
