Product Details:
Payment & Shipping Terms:
|
| Feature: | Environment Friendly, Non-toxic, Tasteless, Safe And Reliable | Certification: | FDA, LFGB, UL, ROSH, SGS |
|---|---|---|---|
| Material: | 100% Pure Silicone Raw Material | Temperature: | -60℃~300℃ |
| Hardness: | 30-80 A | Color: | White, Red, Blue, Gray, Green, Etc |
| High Light: | OD10mm medical grade silicone tubing,odorless clear silicone rubber tubing,OD10mm clear silicone pipe |
||

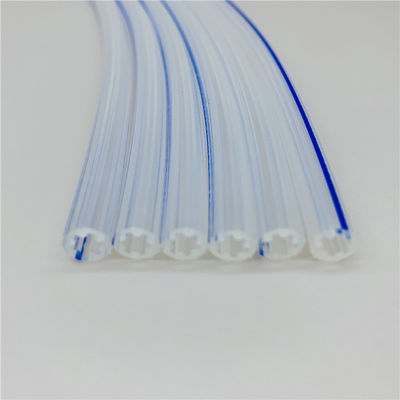

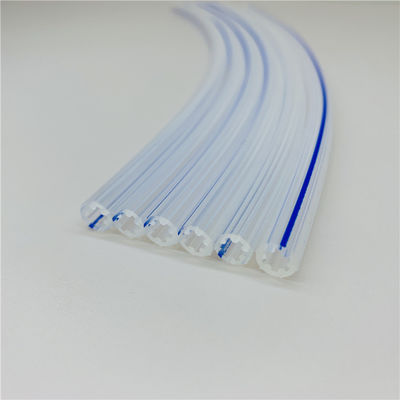

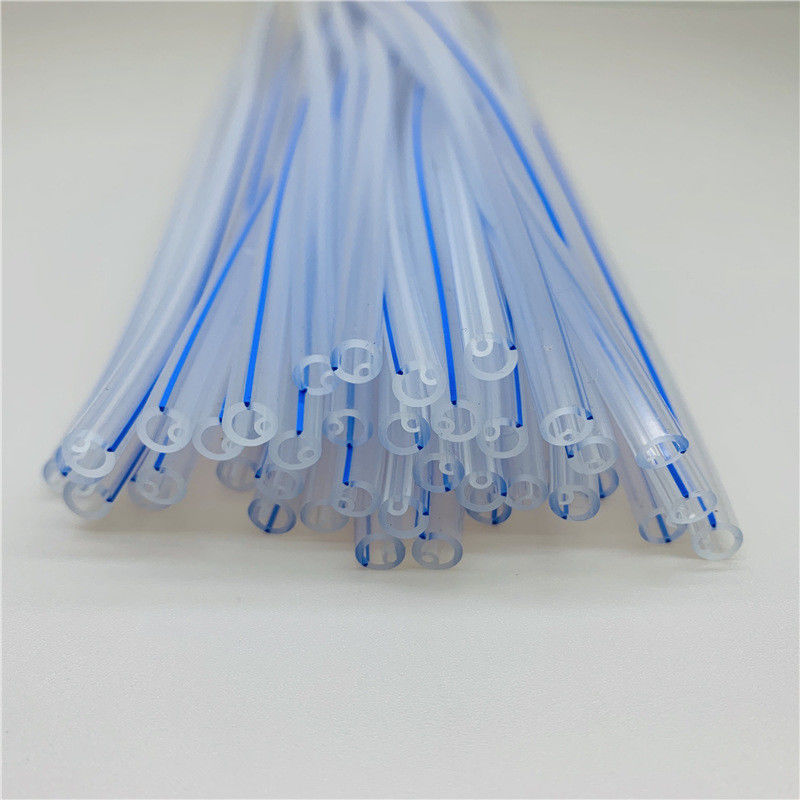

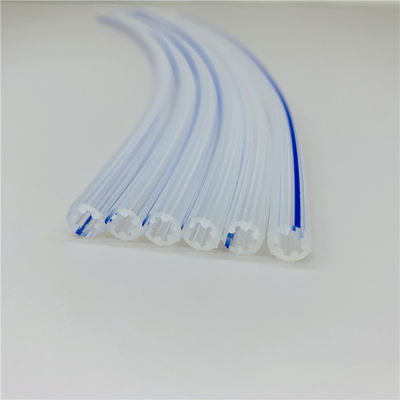

Medical Grade Silicone Tubing
Product Description
| Brand Name: | Tenchy |
| Model Number: | TS-MS02 |
| Material: | 100% pure silicone raw material |
| Name: | Silicone Tubing |
| Color: | white, red, blue, gray, etc |
| Size: | Customized |
| Hardness: | 30-80A |
| Certification: | FDA, LFGB, UL, ROSH, SGS |
| Feature: | Environment friendly, non-toxic, tasteless, Safe and reliable |
| Temperature: | -60℃~240℃ |
| Application: |
• Peristalic pumps • Multi-lumen catheter mainshafts • Wound drainage tubes • Enternal feeding catheters • Spring reinforced catheters • Peritoneal dialysis catheters |
Medical silicone tubing is mainly used for connection between medical equipment or direct contact with the human body. This type of hose needs to meet medical-grade requirements and has to be safe, and we usually use small-caliber clear silicone tube or single-layer braided silicone hose.
The medical silicone tubing is platinum cured and is finished under high temperature, the finished tubing is ordorless, nontoxic and with high transparency. The tubing inner diameter can be as small as 0.3mm. The medical silicone tube produced by Tenchy has strictly passed the releated medical test.
| Medical Grade Silicone Tubing | ||||||
| Item # | Specification | Tolerance | Available Length per coil (meter) | |||
| ID(mm) | OD(mm) | Thickness (mm) |
for ID | for Thickness | ||
| MST-051 | 0.5 | 1.0 | 0.3 | ±0.05 | ±0.05 | 30, 50, 100 |
| MST-0515 | 0.5 | 1.5 | 0.5 | ±0.05 | ±0.05 | 30, 50, 100 |
| MST-052 | 0.5 | 2.0 | 0.8 | ±0.05 | ±0.05 | 30, 50, 100 |
| MST-0819 | 0.8 | 1.9 | 0.6 | ±0.05 | ±0.05 | 30, 50, 100 |
| MST-12 | 1.0 | 2.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-13 | 1.0 | 3.0 | 1.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-14 | 1.0 | 4.0 | 1.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-1525 | 1.5 | 2.5 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-153 | 1.5 | 3.0 | 0.8 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-1632 | 1.6 | 3.2 | 0.8 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-23 | 2.0 | 3.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-24 | 2.0 | 4.0 | 1.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-25 | 2.0 | 5.0 | 1.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-26 | 2.0 | 6.0 | 2.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-2564 | 2.5 | 6.4 | 2.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-34 | 3.0 | 4.0 | 0.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-35 | 3.0 | 5.0 | 1.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-36 | 3.0 | 6.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-38 | 3.0 | 8.0 | 2.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-39 | 3.0 | 9.0 | 3.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-47 | 4.0 | 7.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-48 | 4.0 | 8.0 | 2.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-56 | 5.0 | 6.0 | 0.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-57 | 5.0 | 7.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-58 | 5.0 | 8.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-59 | 5.0 | 9.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-510 | 5.0 | 10.0 | 2.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-67 | 6.0 | 7.0 | 0.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-68 | 6.0 | 8.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-69 | 6.0 | 9.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-610 | 6.0 | 10.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-612 | 6.0 | 12.0 | 3.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-79 | 7.0 | 9.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-710 | 7.0 | 10.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-711 | 7.0 | 11.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-712 | 7.0 | 12.0 | 2.5 | ±0.15 | ±0.10 | 30, 50 |
| MST-713 | 7.0 | 13.0 | 3.0 | ±0.15 | ±0.10 | 30, 50 |
| MST-810 | 8.0 | 10.0 | 1.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-811 | 8.0 | 11.0 | 1.5 | ±0.20 | ±0.10 | 30, 50 |
| MST-812 | 8.0 | 12.0 | 2.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-912 | 9.0 | 12.0 | 1.5 | ±0.20 | ±0.10 | 30, 50 |
| MST-913 | 9.0 | 13.0 | 2.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1012 | 10.0 | 12.0 | 1.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1013 | 10.0 | 13.0 | 1.5 | ±0.20 | ±0.10 | 30, 50 |
| MST-1014 | 10.0 | 14.0 | 2.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1016 | 10.0 | 16.0 | 3.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1018 | 10.0 | 18.0 | 4.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1214 | 12.0 | 14.0 | 1.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1216 | 12.0 | 16.0 | 2.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1218 | 12.0 | 18.0 | 3.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1318 | 13.0 | 18.0 | 2.5 | ±0.25 | ±0.15 | 30, 50 |
| MST-1418 | 14.0 | 18.0 | 2.0 | ±0.25 | ±0.15 | 30, 50 |
| MST-1620 | 16.0 | 20.0 | 2.0 | ±0.30 | ±0.15 | 30, 50 |
| MST-1621 | 16.0 | 21.0 | 2.5 | ±0.30 | ±0.15 | 30, 50 |
| MST-1622 | 16.0 | 22.0 | 3.0 | ±0.30 | ±0.15 | 30, 50 |
| MST-1925 | 19.0 | 25.0 | 3.0 | ±0.35 | ±0.20 | 30, 50 |
| MST-2026 | 20.0 | 26.0 | 3.0 | ±0.40 | ±0.20 | 30, 50 |
| MST-2531 | 25.0 | 31.0 | 3.0 | ±0.60 | ±0.30 | 30, 50 |
| MST-2533 | 25.0 | 33.0 | 4.0 | ±0.60 | ±0.30 | 30, 50 |
| MST-2535 | 25.0 | 35.0 | 5.0 | ±0.60 | ±0.30 | 30, 50 |
