| Temperature: | -60℃~240℃ | Feature: | Environment Friendly, Non-toxic |
|---|---|---|---|
| Hardness: | 30-80 A | Material: | 100% Pure Silicone Raw Material |
| Color: | White, Red, Blue, Gray, Green, Etc | ||
| High Light: | Translucent silicone rubber tubing,16.4ft high temperature silicone hose,40A high temperature silicone hose |
||

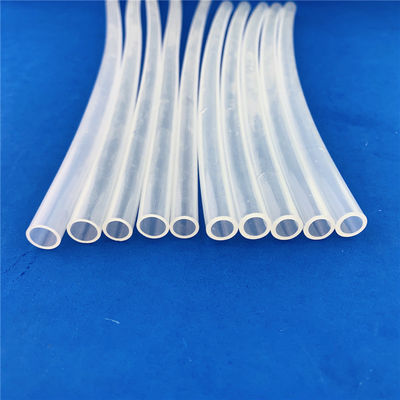

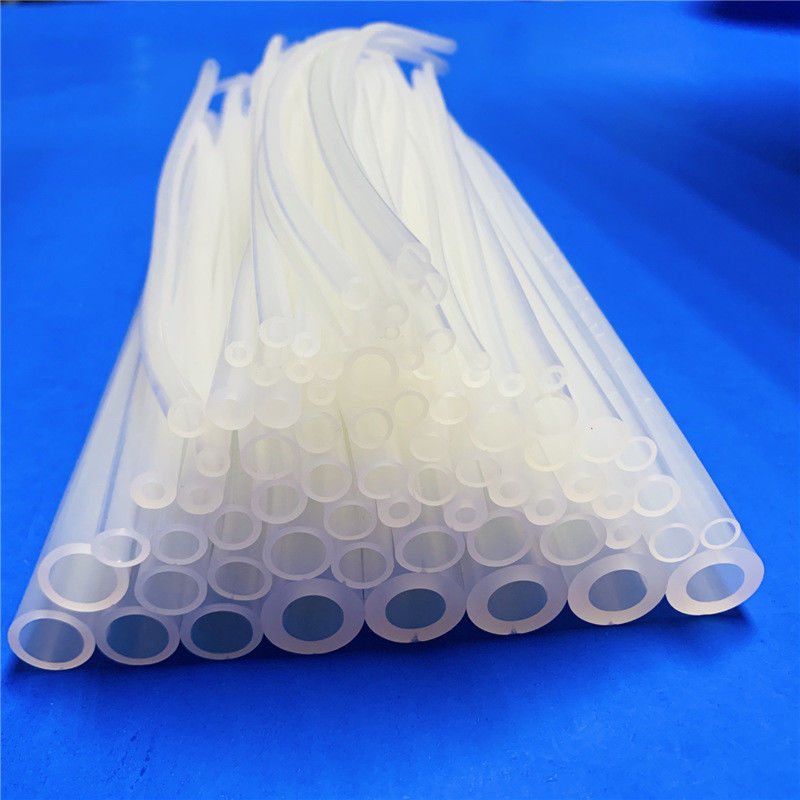

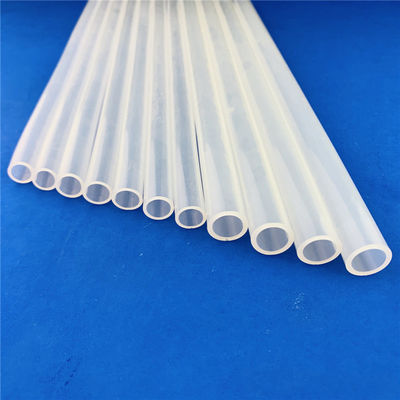

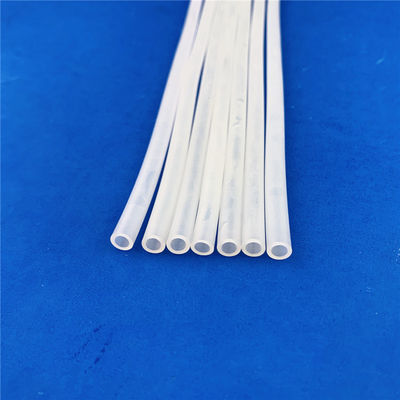

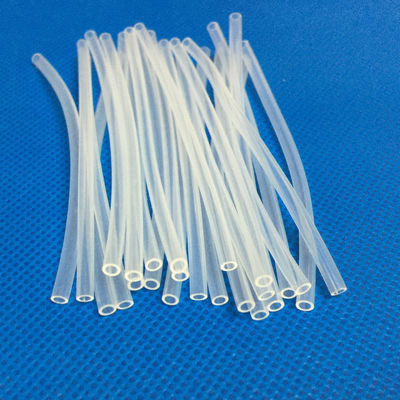

Medical Grade Dental Use Silicone Tubing
Main Features
| Model Number: | TS-MS05 |
| Material: | 100% pure silicone raw material |
| Name: | Silicone Tubing |
| Color: | white, red, blue, gray, green, etc |
| Size: | Customized |
| Hardness: | 30-80A |
| Feature: | Environment friendly, non-toxic, tasteless |
| Temperature: | -60℃~240℃ |
| Application: |
• Peristalic pumps • Wound drainage tubes • Enternal feeding catheters • Spring reinforced catheters • Peritoneal dialysis catheters • Vascular loops |
Medical silicone tubing is mainly used for connection between medical equipment or direct contact with the human body. This type of hose needs to meet medical-grade requirements and has to be safe, and we usually use small-caliber clear silicone tube or single-layer braided silicone hose.
The medical silicone tubing is platinum cured and is finished under high temperature, the finished tubing is ordorless, nontoxic and with high transparency. The tubing inner diameter can be as small as 0.3mm. The medical silicone tube produced by Tenchy has strictly passed the releated medical test.
| Medical Grade Silicone Tubing | ||||||
| Item # | Specification | Tolerance | Available Length per coil (meter) | |||
| ID(mm) | OD(mm) | Thickness (mm) |
for ID | for Thickness | ||
| MST-051 | 0.5 | 1.0 | 0.3 | ±0.05 | ±0.05 | 30, 50, 100 |
| MST-0515 | 0.5 | 1.5 | 0.5 | ±0.05 | ±0.05 | 30, 50, 100 |
| MST-052 | 0.5 | 2.0 | 0.8 | ±0.05 | ±0.05 | 30, 50, 100 |
| MST-0819 | 0.8 | 1.9 | 0.6 | ±0.05 | ±0.05 | 30, 50, 100 |
| MST-12 | 1.0 | 2.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-13 | 1.0 | 3.0 | 1.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-14 | 1.0 | 4.0 | 1.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-1525 | 1.5 | 2.5 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-153 | 1.5 | 3.0 | 0.8 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-1632 | 1.6 | 3.2 | 0.8 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-23 | 2.0 | 3.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-24 | 2.0 | 4.0 | 1.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-25 | 2.0 | 5.0 | 1.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-26 | 2.0 | 6.0 | 2.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| MST-2564 | 2.5 | 6.4 | 2.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-34 | 3.0 | 4.0 | 0.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-35 | 3.0 | 5.0 | 1.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-36 | 3.0 | 6.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-38 | 3.0 | 8.0 | 2.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-39 | 3.0 | 9.0 | 3.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-47 | 4.0 | 7.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-48 | 4.0 | 8.0 | 2.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| MST-56 | 5.0 | 6.0 | 0.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-57 | 5.0 | 7.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-58 | 5.0 | 8.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-59 | 5.0 | 9.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-510 | 5.0 | 10.0 | 2.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-67 | 6.0 | 7.0 | 0.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-68 | 6.0 | 8.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-69 | 6.0 | 9.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-610 | 6.0 | 10.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-612 | 6.0 | 12.0 | 3.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-79 | 7.0 | 9.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-710 | 7.0 | 10.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-711 | 7.0 | 11.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| MST-712 | 7.0 | 12.0 | 2.5 | ±0.15 | ±0.10 | 30, 50 |
| MST-713 | 7.0 | 13.0 | 3.0 | ±0.15 | ±0.10 | 30, 50 |
| MST-810 | 8.0 | 10.0 | 1.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-811 | 8.0 | 11.0 | 1.5 | ±0.20 | ±0.10 | 30, 50 |
| MST-812 | 8.0 | 12.0 | 2.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-912 | 9.0 | 12.0 | 1.5 | ±0.20 | ±0.10 | 30, 50 |
| MST-913 | 9.0 | 13.0 | 2.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1012 | 10.0 | 12.0 | 1.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1013 | 10.0 | 13.0 | 1.5 | ±0.20 | ±0.10 | 30, 50 |
| MST-1014 | 10.0 | 14.0 | 2.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1016 | 10.0 | 16.0 | 3.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1018 | 10.0 | 18.0 | 4.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1214 | 12.0 | 14.0 | 1.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1216 | 12.0 | 16.0 | 2.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1218 | 12.0 | 18.0 | 3.0 | ±0.20 | ±0.10 | 30, 50 |
| MST-1318 | 13.0 | 18.0 | 2.5 | ±0.25 | ±0.15 | 30, 50 |
| MST-1418 | 14.0 | 18.0 | 2.0 | ±0.25 | ±0.15 | 30, 50 |
| MST-1620 | 16.0 | 20.0 | 2.0 | ±0.30 | ±0.15 | 30, 50 |
| MST-1621 | 16.0 | 21.0 | 2.5 | ±0.30 | ±0.15 | 30, 50 |
| MST-1622 | 16.0 | 22.0 | 3.0 | ±0.30 | ±0.15 | 30, 50 |
| MST-1925 | 19.0 | 25.0 | 3.0 | ±0.35 | ±0.20 | 30, 50 |
| MST-2026 | 20.0 | 26.0 | 3.0 | ±0.40 | ±0.20 | 30, 50 |
| MST-2531 | 25.0 | 31.0 | 3.0 | ±0.60 | ±0.30 | 30, 50 |
| MST-2533 | 25.0 | 33.0 | 4.0 | ±0.60 | ±0.30 | 30, 50 |
| MST-2535 | 25.0 | 35.0 | 5.0 | ±0.60 | ±0.30 | 30, 50 |
