China professional clear medical silicone pipe tube for aquarium pump tubing

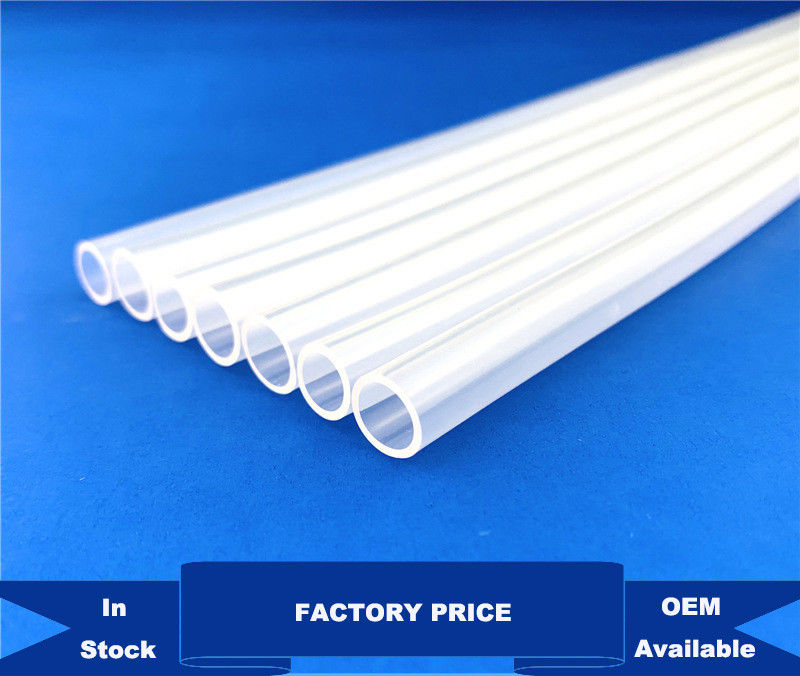

Large Image : China professional clear medical silicone pipe tube for aquarium pump tubing

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Tenchy
Certification:	FDA, LFGB, UL, ROSH, SGS
Model Number:	TS-MS03

Payment & Shipping Terms:

Minimum Order Quantity:	500meters
Delivery Time:	5-10 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 Meter/Meters per Day

Contact Now

Detailed Product Description

Material:	100% Pure Silicone Raw Material	Hardness:	40-70 A
Color:	White, Red, Blue, Gray, Green, Etc	Temperature:	-60℃~240℃
Certification:	FDA, LFGB, UL, ROSH	Feature:	Environment Friendly, Non-toxic, Tasteless, Safe And Reliable
High Light:	1.3g/cm3 medical grade silicone tubing , 8Mpa soft flexible rubber tubing , 1.3g/cm3 soft flexible rubber tubing

Medical Grade Silicone Tubings

Product Description

Silicone elastomer compound meets USP Class VI requirements
Compound is non-toxic and FDA-sanctioned for use with food contact surfaces
Odorless, tasteless, and inert
Surface properties resist sticking and encrustation, and will not support bacteria growth
Translucent, natural color provides visual contact with flow
Tenchy Medical Grade Tubing is soft, pliable, and contains no plasticizers which could leach out, causing flow contamination or tube hardening

Physical Properties

Hardness:	50±5A
Density:	1.13±0.05g/cm³
Tensile strength :	>11.1 MPa
Elongation at break:	>580%
Working temperature:	-60°C to 200°C
Compression set:	8% (150℃/22h)
Tear resistance (tear strength), Die B:	>40KN/m

Brand Name:	Tenchy
Model Number:	TS-MS03
Material:	100% pure silicone raw material
Name:	Silicone Tubing
Size:	Customized
Feature:	Environment friendly, non-toxic, tasteless, Safe and reliable
Temperature:	-60℃~240℃
Application:	• Peristalic pumps • Multi-lumen catheter mainshafts • Enternal feeding catheters • Spring reinforced catheters • Peritoneal dialysis catheters • Tracheostomy tubes

Packaging

● Coiled tubing

● Cut to Length and individual PE bag&Label packing

● Customized cartons or bags can be provided in large quantities

Medical Grade Silicone Tubing
Item #	Specification			Tolerance		Available Length per coil (meter)
Item #	ID(mm)	OD(mm)	Thickness (mm)	for ID	for Thickness	Available Length per coil (meter)

MST-051	0.5	1.0	0.3	±0.05	±0.05	30, 50, 100
MST-0515	0.5	1.5	0.5	±0.05	±0.05	30, 50, 100
MST-052	0.5	2.0	0.8	±0.05	±0.05	30, 50, 100
MST-0819	0.8	1.9	0.6	±0.05	±0.05	30, 50, 100
MST-12	1.0	2.0	0.5	±0.10	±0.05	30, 50, 100
MST-13	1.0	3.0	1.0	±0.10	±0.05	30, 50, 100
MST-14	1.0	4.0	1.5	±0.10	±0.05	30, 50, 100
MST-1525	1.5	2.5	0.5	±0.10	±0.05	30, 50, 100
MST-153	1.5	3.0	0.8	±0.10	±0.05	30, 50, 100
MST-1632	1.6	3.2	0.8	±0.10	±0.05	30, 50, 100
MST-23	2.0	3.0	0.5	±0.10	±0.05	30, 50, 100
MST-24	2.0	4.0	1.0	±0.10	±0.05	30, 50, 100
MST-25	2.0	5.0	1.5	±0.10	±0.05	30, 50, 100
MST-26	2.0	6.0	2.0	±0.10	±0.05	30, 50, 100
MST-2564	2.5	6.4	2.0	±0.10	±0.10	30, 50, 100
MST-34	3.0	4.0	0.5	±0.10	±0.10	30, 50, 100
MST-35	3.0	5.0	1.0	±0.10	±0.10	30, 50, 100
MST-36	3.0	6.0	1.5	±0.10	±0.10	30, 50, 100
MST-38	3.0	8.0	2.5	±0.10	±0.10	30, 50, 100
MST-39	3.0	9.0	3.0	±0.10	±0.10	30, 50, 100
MST-47	4.0	7.0	1.5	±0.10	±0.10	30, 50, 100
MST-48	4.0	8.0	2.0	±0.10	±0.10	30, 50, 100
MST-56	5.0	6.0	0.5	±0.15	±0.10	30, 50, 100
MST-57	5.0	7.0	1.0	±0.15	±0.10	30, 50, 100
MST-58	5.0	8.0	1.5	±0.15	±0.10	30, 50, 100
MST-59	5.0	9.0	2.0	±0.15	±0.10	30, 50, 100
MST-510	5.0	10.0	2.5	±0.15	±0.10	30, 50, 100
MST-67	6.0	7.0	0.5	±0.15	±0.10	30, 50, 100
MST-68	6.0	8.0	1.0	±0.15	±0.10	30, 50, 100
MST-69	6.0	9.0	1.5	±0.15	±0.10	30, 50, 100
MST-610	6.0	10.0	2.0	±0.15	±0.10	30, 50, 100
MST-612	6.0	12.0	3.0	±0.15	±0.10	30, 50, 100
MST-79	7.0	9.0	1.0	±0.15	±0.10	30, 50, 100
MST-710	7.0	10.0	1.5	±0.15	±0.10	30, 50, 100
MST-711	7.0	11.0	2.0	±0.15	±0.10	30, 50, 100
MST-712	7.0	12.0	2.5	±0.15	±0.10	30, 50
MST-713	7.0	13.0	3.0	±0.15	±0.10	30, 50
MST-810	8.0	10.0	1.0	±0.20	±0.10	30, 50
MST-811	8.0	11.0	1.5	±0.20	±0.10	30, 50
MST-812	8.0	12.0	2.0	±0.20	±0.10	30, 50
MST-912	9.0	12.0	1.5	±0.20	±0.10	30, 50
MST-913	9.0	13.0	2.0	±0.20	±0.10	30, 50
MST-1012	10.0	12.0	1.0	±0.20	±0.10	30, 50
MST-1013	10.0	13.0	1.5	±0.20	±0.10	30, 50
MST-1014	10.0	14.0	2.0	±0.20	±0.10	30, 50
MST-1016	10.0	16.0	3.0	±0.20	±0.10	30, 50
MST-1018	10.0	18.0	4.0	±0.20	±0.10	30, 50
MST-1214	12.0	14.0	1.0	±0.20	±0.10	30, 50
MST-1216	12.0	16.0	2.0	±0.20	±0.10	30, 50
MST-1218	12.0	18.0	3.0	±0.20	±0.10	30, 50
MST-1318	13.0	18.0	2.5	±0.25	±0.15	30, 50
MST-1418	14.0	18.0	2.0	±0.25	±0.15	30, 50
MST-1620	16.0	20.0	2.0	±0.30	±0.15	30, 50
MST-1621	16.0	21.0	2.5	±0.30	±0.15	30, 50
MST-1622	16.0	22.0	3.0	±0.30	±0.15	30, 50
MST-1925	19.0	25.0	3.0	±0.35	±0.20	30, 50
MST-2026	20.0	26.0	3.0	±0.40	±0.20	30, 50
MST-2531	25.0	31.0	3.0	±0.60	±0.30	30, 50
MST-2533	25.0	33.0	4.0	±0.60	±0.30	30, 50
MST-2535	25.0	35.0	5.0	±0.60	±0.30	30, 50
