Product Details:
Payment & Shipping Terms:
|
| Products: | Silicone Rubber Gasket | Brand: | Tenchy |
|---|---|---|---|
| Feature: | Heat Resistant, UV Resistant, Chemical Resistant, Food Grade | Material: | 100% Silicone |
| Size: | Customized | Model No: | TS-CSG02 |
| Color: | Black, White, Rust Red And Other | Application: | Industry Sealing |
| Durometer: | 30-80 Shore A | Place Of Origin: | Shenzhen, China |
| High Light: | 25kN/m silicone rubber seals,25kN/m food grade gasket seal,UL weatherproof food grade gasket seal |
||

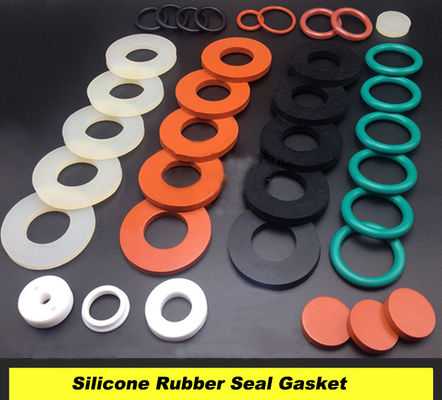

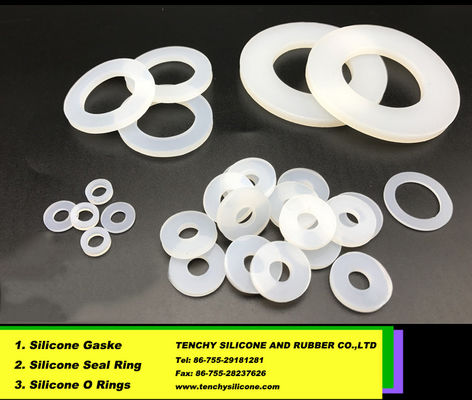

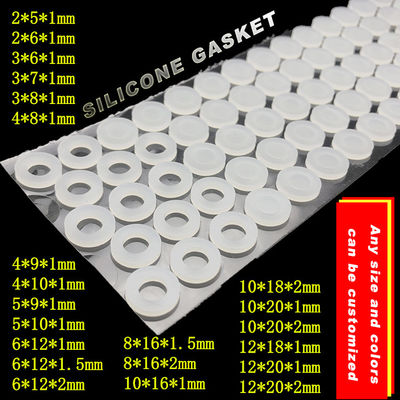

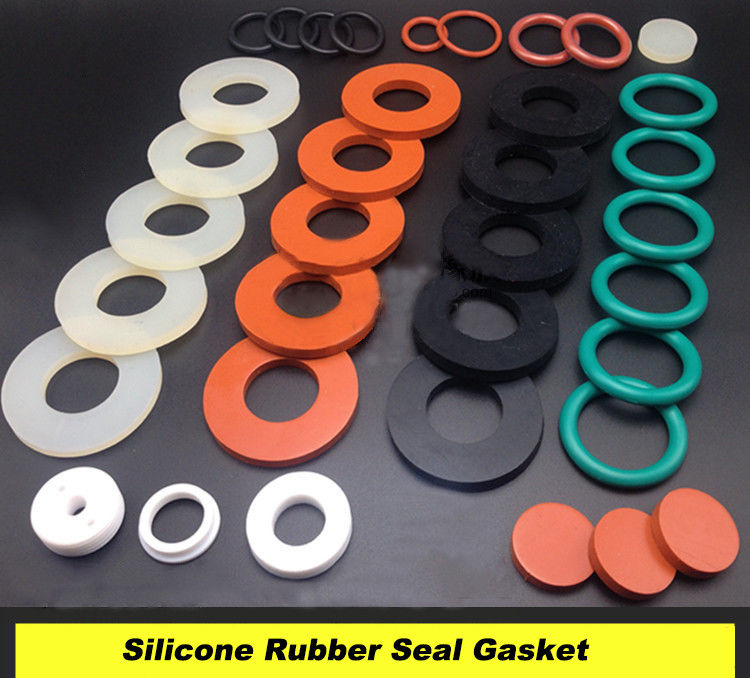

Factory Supply Silicone Rubber Seals Silicone Gasket
Product Description
An O-Ring seal is a means for closing off a passageway preventing an unwanted escape or loss of fluid. The seal consists of an O-Ring installed in a gland and is exactly that - a circular run in which the elastomeric material has a section that is virtually circle. The gland is the cavity (usually within metal) into which the O-Ring is placed. The combination of these two elements comprises an O-Ring seal
| Product Name | Silicone Sealing Gasket |
| Material | Pure Silicone |
| Processing Method | Press Moulding |
| Grade | Food grade |
| Tolerance | ± 0.05mm |
| Feature | Heat Resistant, Chemical Resistant, Weather-Proof, Water-proof, Ageing Resistant |
| Quality Standards | RoHs, Reach, FDA, LFGB |
| Product Safety | Non-toxic, no smell, oil resistance |
| Application | Mechanical, automobile, industrial, construction, or special purpose |
| Polymer | Silicone Rubber |
| Color | Natural, Black, White, Rust Red and other color |
| Density | 1.14g/cm³ |
| Hardness | 30-90 Shore A |
| Tensile Strength | >9.5Mpa |
| Elongation @ Breakage | >550% |
| Tear Strength | 25kN/m |
Linear Shrinkage | 3.3-3.7 |
Rebound Resiliance | >50% |
Temperature Range | -40°C to +200°C |
| For 300℃ Temperature Resistant Special Silicone is Available | |
