Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Pure Silicone | Feature: | Environment Friendly, Non-toxic, Tasteless, Safe And Reliable |
|---|---|---|---|
| Color: | Blue, White, Green, Etc | Temperature: | -60℃~240℃ |
| Hardness: | 30-80 A | Name: | Food Grade Silicone Tubing |
| High Light: | 20mm Food Grade Silicone Tubing,FDA Food Grade Silicone Tubing,20mm silicone hose pipe |
||

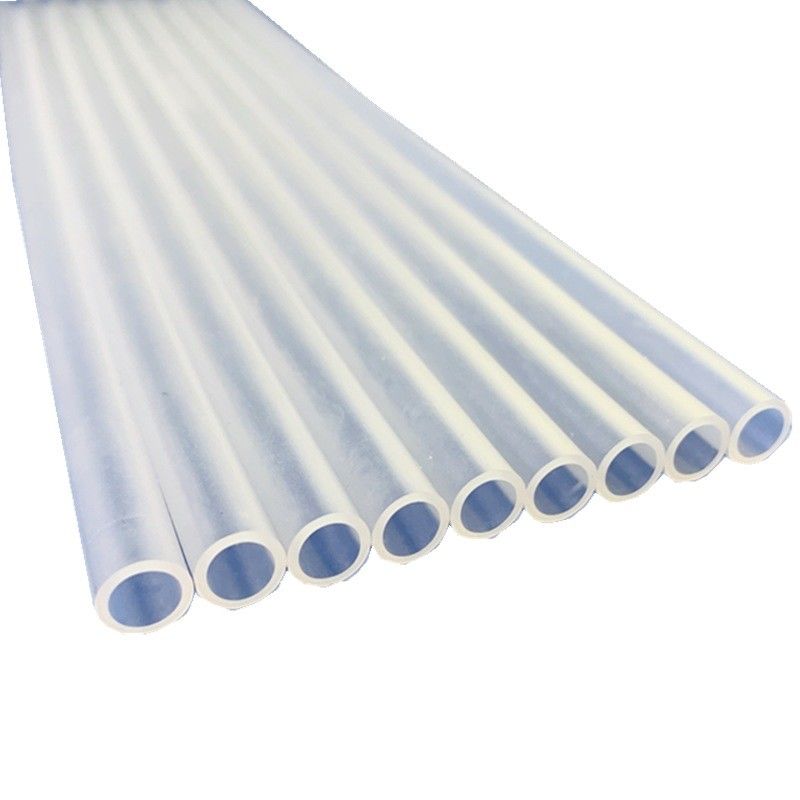

Flexible 20mm Food Grade Silicone Tubing FDA Approved Silicone Hoses
Tenchy provides the food grade silicone tubing, which is made of high elasticity silicone raw material, the silicone tubing meets FDA and LFGB food-grade standards. We can customize silicone tubes of different sizes and colors for our customers.
Silicone rubber has excellent high-low temperatures resistance, it has good working performance in temperature range -60-200°C. and the structure of silicone is extremely stable, resulting in the excellent physical and chemical properties.
The silicone tubing can withstand repeated use and sterilization, and this doesn't influence its resilience and shape. All silicone tubes produced by Tenchy are platinum cured, they are odorless, tasteless and non-toxic, suitable for food contact applications.
Product Description
| Brand Name: | Tenchy Siliocne |
| Model Number: | TS-CT05 |
| Material: | Silicone rubber material |
| Name: | Silicone Tubing |
| Color: | White, Red, Blue, Gray |
| Size: | Customized |
| Application: | Dairy fluid handing tubings/hose High Voltage Insulation Food Processing Equipment |
Physical Properties
| Hardness: | 50±5A |
| Density: | 1.18±0.05g/cm³ |
| Tensile strength : | >8.0 MPa |
| Elongation at break: | >380% |
| Working temperature: | -60°C to 200°C |
| Compression set: | 8% (150℃/22h) |
| Tear resistance (tear strength), Die B: | >20KN/m |
| Food Grade Silicone Tubing | ||||||
| Item # | Specification | Tolerance | Available Length per coil (meter) | |||
| ID(mm) | OD(mm) | Thickness (mm) |
for ID | for Thickness | ||
| ST-12 | 1.0 | 2.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-13 | 1.0 | 3.0 | 1.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-1525 | 1.5 | 2.5 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-153 | 1.5 | 3.0 | 0.8 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-23 | 2.0 | 3.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-24 | 2.0 | 4.0 | 1.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-25 | 2.0 | 5.0 | 1.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-26 | 2.0 | 6.0 | 2.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-34 | 3.0 | 4.0 | 0.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-35 | 3.0 | 5.0 | 1.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-36 | 3.0 | 6.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-46 | 4.0 | 6.0 | 1.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-47 | 4.0 | 7.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-48 | 4.0 | 8.0 | 2.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-57 | 5.0 | 7.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-58 | 5.0 | 8.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-59 | 5.0 | 9.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-510 | 5.0 | 10.0 | 2.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-68 | 6.0 | 8.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-69 | 6.0 | 9.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-79 | 7.0 | 9.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-710 | 7.0 | 10.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-711 | 7.0 | 11.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-712 | 7.0 | 12.0 | 2.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-713 | 7.0 | 13.0 | 3.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-810 | 8.0 | 10.0 | 1.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-811 | 8.0 | 11.0 | 1.5 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-812 | 8.0 | 12.0 | 2.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-814 | 8.0 | 14.0 | 3.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-912 | 9.0 | 12.0 | 1.5 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-913 | 9.0 | 13.0 | 2.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1012 | 10.0 | 12.0 | 1.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1013 | 10.0 | 13.0 | 1.5 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1014 | 10.0 | 14.0 | 2.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1016 | 10.0 | 16.0 | 3.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1214 | 12.0 | 14.0 | 1.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1216 | 12.0 | 16.0 | 2.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1218 | 12.0 | 18.0 | 3.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1317 | 13.0 | 17.0 | 2.0 | ±0.2 | ±0.15 | 30, 50 |
| ST-1318 | 13.0 | 18.0 | 2.5 | ±0.2 | ±0.15 | 30, 50 |
| ST-1420 | 14.0 | 20.0 | 3.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1620 | 16.0 | 20.0 | 2.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1621 | 16.0 | 21.0 | 2.5 | ±0.25 | ±0.15 | 30, 50 |
| ST-1622 | 16.0 | 22.0 | 3.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1623 | 16.0 | 23.0 | 3.5 | ±0.25 | ±0.15 | 30, 50 |
| ST-1722 | 17.0 | 22.0 | 2.5 | ±0.3 | ±0.15 | 30, 50 |
| ST-1824 | 18.0 | 24.0 | 3.0 | ±0.3 | ±0.15 | 30, 50 |
| ST-1925 | 19.0 | 25.0 | 3.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2024 | 20.0 | 24.0 | 2.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2025 | 20.0 | 25.0 | 2.5 | ±0.4 | ±0.20 | 30, 50 |
| ST-2026 | 20.0 | 26.0 | 3.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2226 | 22.0 | 26.0 | 2.0 | ±0.4 | ±0.2 | 30, 50 |
| ST-2530 | 25.0 | 30.0 | 2.5 | ±0.6 | ±0.2 | 30, 50 |
| ST-2531 | 25.0 | 31.0 | 3.0 | ±0.6 | ±0.2 | 30, 50 |
| ST-3038 | 30.0 | 38.0 | 4.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3040 | 30.0 | 40.0 | 5.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3238 | 32.0 | 38.0 | 3.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3240 | 32.0 | 40.0 | 4.0 | ±0.6 | ±0.4 | 30, 50 |
| ST-3545 | 35.0 | 45.0 | 5.0 | ±0.6 | ±0.4 | 30, 50 |
| ST-3844 | 38.0 | 44.0 | 3.0 | ±0.6 | ±0.4 | 30, 50 |
