Product Details:
Payment & Shipping Terms:
|
| Temperature: | -60℃~200℃ | Hardness: | 70 A |
|---|---|---|---|
| Material: | Silicone Raw Material, Polyster | Color: | Translucent, White, Red, Black,etc |
| Size: | Standard And Custom Size | Feature: | Resists UV, Ozone, Gases, And Moisture |
| Certification: | FDA, ROSH, SGS | ||
| High Light: | 70 shore A silicone braided hose pipe,70 shore A high temperature braided hose,2.5MPA high temperature braided hose |
||

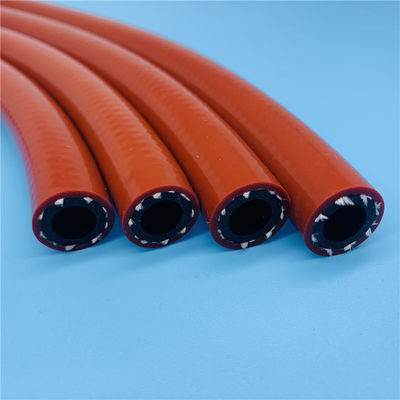

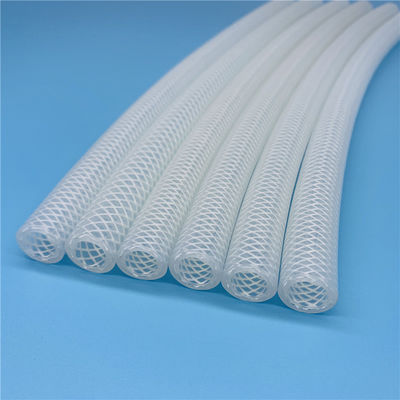

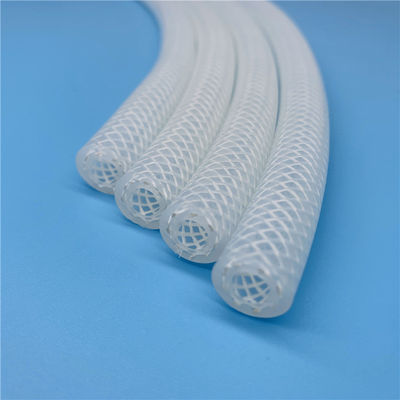

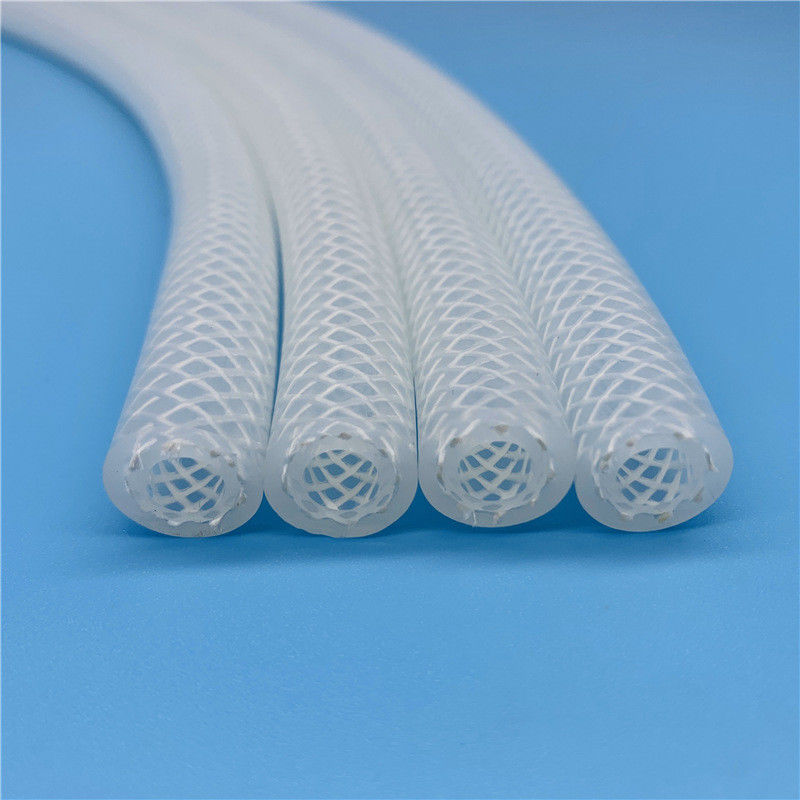

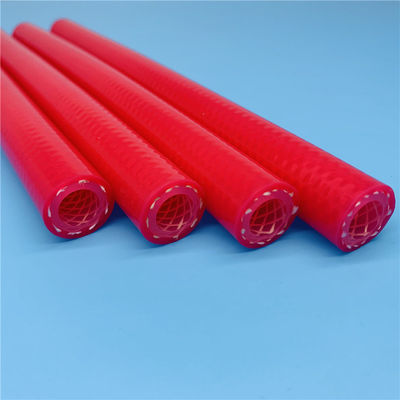

Braided Reinforced Silicone Rubber Hose
Product Description
| Brand Name: | Tenchy |
| Material: | Silicone raw material, Polyster |
| Color: | white, red, green,etc |
| Size: | Customized |
| Hardness: | 70A |
| Feature: | Environment friendly, non-toxic, tasteless, Safe and reliable |
| Temperature: | -60℃~200℃ |
| Application: | Beverageand food filling lines
Pharmacy transfering
Chemical feed lines
|
Specification
| Item Code | ID | OD |
Min. Bend Radius Inch |
Working Pressure | Burst Pressure | |||||
| (mm) | (inch) | (mm) | (inch) | (mm) | (inch) | (Bar) | Psi | (Bar) | (Psi) | |
| RFSB-003 | 3.18 | 1/8’’ | 9.00 | 0.354 | 12.7 | 1/2’’ | 13.8 | 200 | 41.4 | 600 |
| RFSB-005 | 5.00 | 3/16’’ | 11.00 | 0.433 | 25.4 | 1.00’’ | 11.7 | 170 | 35.1 | 509 |
| RFSB-006 | 6.35 | 1/4’’ | 13.20 | 0.519 | 38.1 | 1-1/2’’ | 9.3 | 135 | 27.9 | 405 |
| RFSB-009 | 9.52 | 3/8’’ | 16.60 | 0.654 | 57.15 | 2-1/4’’ | 7.0 | 101 | 21.0 | 305 |
| RFSB-012 | 12.70 | 1/2’’ | 20.30 | 0.799 | 70.00 | 2-3/4’’ | 5.7 | 82 | 17.1 | 248 |
| RFSB-015 | 15.87 | 5/8’’ | 24.50 | 0.965 | 82.55 | 3-1/4’’ | 4.3 | 62 | 12.9 | 187 |
| RFSB-022 | 22.20 | 7/8’’ | 27.90 | 1.099 | 145 | 5-3/4’’ | 3.3 | 47 | 9.9 | 144 |
| RFSB-025 | 25.40 | 1.00’’ | 34.50 | 1.358 | 157 | 6-1/4’’ | 3.0 | 43 | 9.0 | 131 |
| RFSB-031 | 31.75 | 1-1/4’’ | 40.8 | 1.606 | 204 | 8.00’’ | 2.3 | 34 | 6.9 | 100 |
