Product Details:
Payment & Shipping Terms:
|
| Product Name: | Polyster Braided Silicone Hose | Certification: | FDA CFR 177.2600 |
|---|---|---|---|
| Material: | Silicone Raw Material+Polyster | Feature: | Environment Friendly, Non-toxic, Odourless, Safe And Reliable |
| Color: | Translucent, White, Red, Black,etc | Temperature: | -60℃~200℃ |
| Application: | Beverageand Food Filling Lines, Pharmacy Transfering, Chemical Feed Lines | ||
| High Light: | Polyester braided reinforced silicone hose,LFGB high temp clear silicone hose,ID25.4mm high temp clear silicone hose |
||

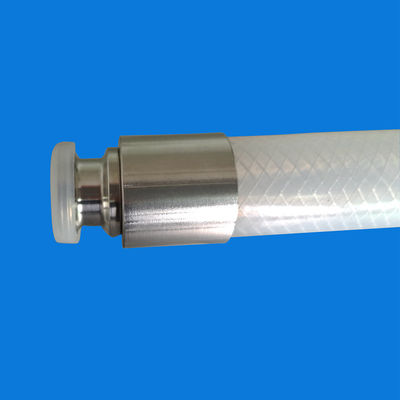

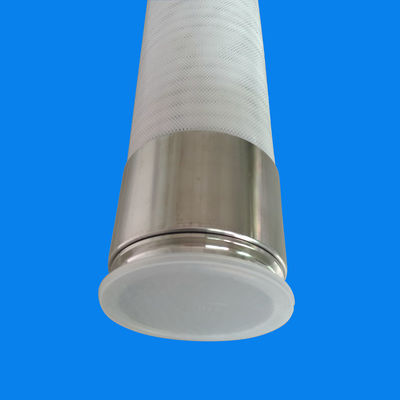

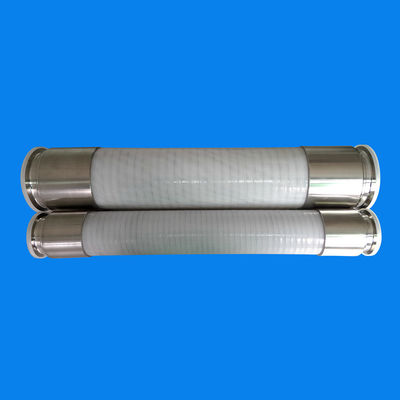

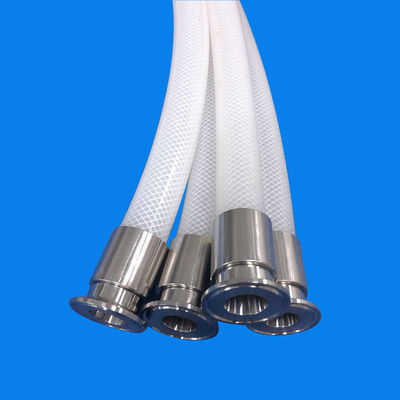

Pharmacy Polyster braided reinforced silicone hose
Product Description
| Brand Name: | Tenchy |
| Material: | Silicone raw material, Polyster |
| Color: | Customized |
| Hardness: | 70A |
| Certification: | FDA, ROSH, SGS |
| Feature: | Environment friendly, non-toxic, tasteless, Safe and reliable |
| Application: | Food Processing Equipment Pharmaceutical & Bio Pharma Industries Aerospace & Military Industries Automotive Electrical Industries Minor Appliances Heater Tubing’s |
Specification
| Item Code | ID | Thickness | OD |
Min. Bend Radius |
Working Pressure | Burst Pressure | Vacuum | ||||||
| (mm) | (inch) | (mm) | (mm) | (inch) | (mm) | (inch) | (Bar) | Psi | (Bar) | (Psi) | (Bar) | (Psi) | |
| RFSV-003 | 12.7 | 1/2’’ | 5.20 | 23.1 | 0.91 | 39.0 | 9.9 | 144 | 29.8 | 433 |
0.91 |
13.23 |
|
| RFSV-005 | 19.0 | 3/4’’ | 5.20 | 29.4 | 1.16 | 54.0 | 8.3 | 120 | 24.8 | 359 | |||
| RFSV-006 | 25.4 | 1.00’’ | 5.20 | 35.8 | 1.41 | 68.0 | 7.4 | 107 | 22.2 | 321 | |||
| RFSV-009 | 38.1 | 1.50’’ | 5.20 | 48.5 | 1.91 | 112.0 | 5.7 | 83 | 17.2 | 250 | |||
| RFSV-012 | 50.8 | 2.00’’ | 5.20 | 61.2 | 2.41 | 144.0 | 4.6 | 67 | 13.8 | 200 | |||
| RFSV-015 | 63.5 | 2.50’’ | 5.20 | 73.9 | 2.91 | 181.0 | 3.8 | 55 | 11.3 | 164 | |||
| RFSV-022 | 76.2 | 3.0’’ | 5.20 | 86.6 | 3.41 | 232.0 | 3.0 | 44 | 9.1 | 132 | |||
| RFSV-025 | 101.6 | 4.0’’ | 5.20 | 112.0 | 4.41 | 367.0 | 1.9 | 27 | 5.6 | 82 | |||
