Heat Resistance polyester Braided Silicone Tubing White Transparent Silicone Hose

China Shenzhen Tenchy Silicone&Rubber Co.,Ltd certification
China Shenzhen Tenchy Silicone&Rubber Co.,Ltd certification
I'm Online Chat Now

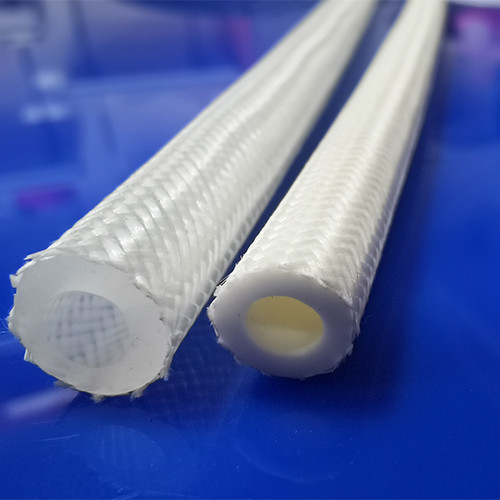

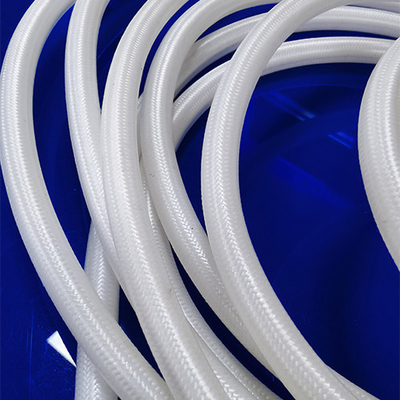

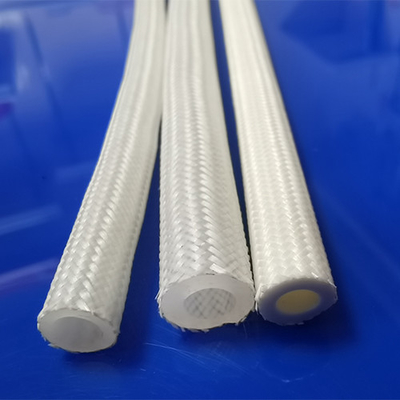

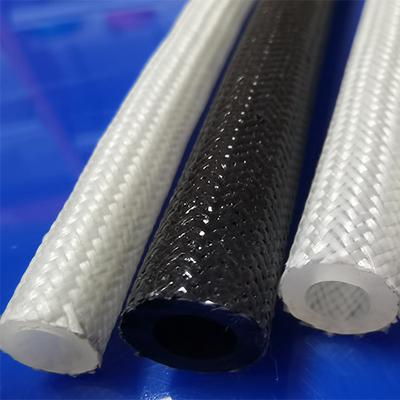

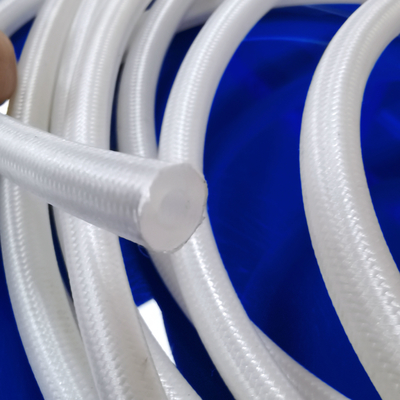

Heat Resistance polyester Braided Silicone Tubing White Transparent Silicone Hose

Heat Resistance polyester Braided Silicone Tubing White Transparent Silicone Hose
Heat Resistance polyester Braided Silicone Tubing White Transparent Silicone Hose Heat Resistance polyester Braided Silicone Tubing White Transparent Silicone Hose Heat Resistance polyester Braided Silicone Tubing White Transparent Silicone Hose Heat Resistance polyester Braided Silicone Tubing White Transparent Silicone Hose Heat Resistance polyester Braided Silicone Tubing White Transparent Silicone Hose

Large Image :  Heat Resistance polyester Braided Silicone Tubing White Transparent Silicone Hose

Product Details:
Place of Origin: China
Brand Name: Tenchy
Certification: FDA, UL, ROSH, LFGB
Model Number: OBT-02
Payment & Shipping Terms:
Minimum Order Quantity: 100 meters
Packaging Details: By customized OPP bag and Carton
Delivery Time: 5-10 work days
Payment Terms: D/P, T/T, Western Union
Supply Ability: 1000 Meters per Day
Detailed Product Description
Materials: Silicone And Polyester Color: Black, Blue, Orange, Red,
Size: ID 3mm-25mm Thickness: 2mm-3mm
Feature: High Pressure Resistance, Soft And Flexible Production Process: Silicone Extrusion Hose+ Outer Polyester Weaving Braid Reinforced
Sample Period: 1-2 Days(3-5 Days For Customized Tubing) Printing: Customized
Work Temperature: -60 To 180 ℃
High Light:

Polyester Braided Silicone Tubing

,

3mm Braided Silicone Tubing

,

Polyester high temp silicone tubing



High pressure resistance smooth white outer braided silicone tube





The polyester braided silicone hose is made of polyester and high elasticity silicone, and it is widely used in food machinery and medical equipment.



The silicone hose is platinum cured, or made of normal raw material which makes the hose odorless and tasteless. In addition, the inner and outer walls of the silicone hose are completely smooth, making the flow of materials in the sanitary hose fully smooth, and at the same time making the cleaning of the silicone hose more convenient and effective. It is the hose for the pharmaceutical industry and Food&Beverage equipment.





Main feature



1. High pressure resistance.

2. High transparent, soft and flexible.

3. Excellent heat-resistant, high tensile strength performance. Waterproof, dust proof and insulation.

4. Non-toxic, colorless, durable. Temperature ranges from -50℃ to 260℃. Suitable for all kinds of environment



Physical Properties



Hardness Liner 30-80A
Tensile strength >1.19MPa
Elongation at break >320%
Tear resistance (tear strength) >20KN/m
Britle temperature -40°C (-40 ℉)
Vulcanization Secondary cured method
Maximum Operating Temperature 180°C (356 ℉)



Heat Resistance polyester Braided Silicone Tubing White Transparent Silicone Hose 0



Heat Resistance polyester Braided Silicone Tubing White Transparent Silicone Hose 1



Heat Resistance polyester Braided Silicone Tubing White Transparent Silicone Hose 2



  • The size/hardness/color can be custom-made.
  • Such silicone material meets the food requirements certification.
  • Weak acid and alkali resistance, so the silicone tube can pass some medicine liquid.
  • Our factory also can allocate the silicone raw material according to your application requirements or performance requirements.
  • The performance,such as elongation, tear and tensile strength,compression set,all can be customized.



Application



Industrial equipment

Biomedical processing

Cosmetic processing

Food processing silicone accessaries

Transfer pressure for all car's & motors UTV, ATV etc.

Hydraulic brake system





Hose Construction



Inner hose: Silicone

Outside braided: Polyester weaving reinforced





Packaging



Length : 100m per roll, 2-3 roll per carton.

We have a professional cutting machine that can cut various products with shorter lengths according to customer requirements. Then use OPP bags and standard cartons.
