Product Details:
Payment & Shipping Terms:
|
| Material: | Silicone Raw Material, Polyster | Application: | Food Processing Equipment, Pharmaceutical & Bio Pharma Industries, Aerospace & Military Industries, Automotive Electrical Industries |
|---|---|---|---|
| Certification: | FDA, ROSH, SGS | Feature: | Environment Friendly, Non-toxic, Tasteless, Safe And Reliable |
| Color: | Translucent, White, Etc | Hardness: | 70 A |
| High Light: | ROhs braided silicone tubing,20mm diameter clear silicone tube,20mm diameter braided silicone tubing |
||

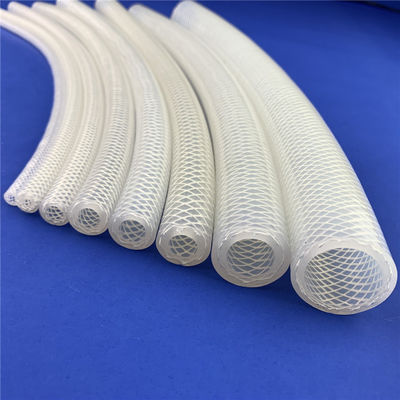

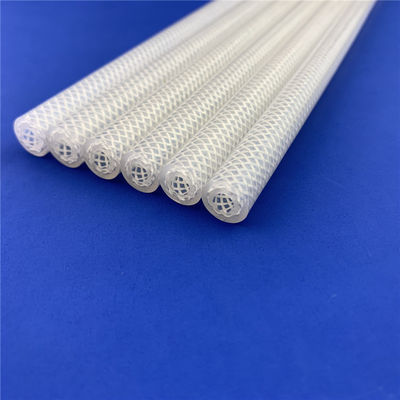

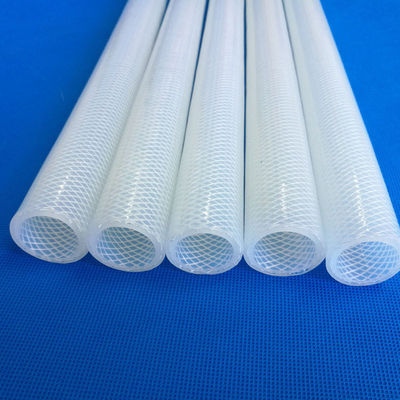

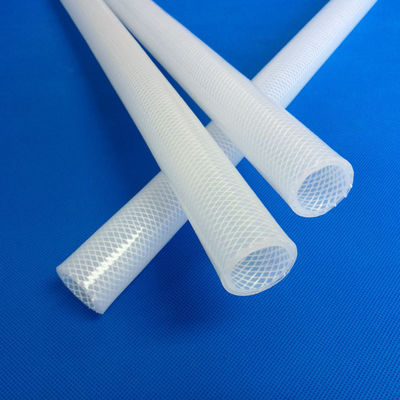

High Pressure Resistant Single Braid Silicone Hose
The polyster braided silicone hose is made of polyester and high elasticity silicone, and it is widely used in food machinery and medical equipment.
The silicone hose is platinum cured ,which makes the hose odorless and tasteless,In addition, the inner and outer walls of the silicone hose are completely smooth, making the flow of materials in the sanitary hose fully smooth, and at the same time making the cleaning of the silicone hose more convenient and effective. It is the hose for the pharmaceutical industry and Food&Beverage equipment.
Product Description
| Hardness Liner | 70±5A |
| Hardness Cover | 60±5A |
| Tensile strength | >8.5MPa |
| Elongation at break | >320% |
| Tear resistance (tear strength) | >25KN/m |
| Britle temperature | -40°C (-40 ℉) |
| Maximum Operating Temperature | 180°C (356 ℉) |
Specification
| Item Code | ID | OD |
Min. Bend Radius Inch |
Working Pressure | Burst Pressure | |||||
| (mm) | (inch) | (mm) | (inch) | (mm) | (inch) | (Bar) | Psi | (Bar) | (Psi) | |
| RFSB-003 | 3.18 | 1/8’’ | 9.00 | 0.354 | 12.7 | 1/2’’ | 13.8 | 200 | 41.4 | 600 |
| RFSB-005 | 5.00 | 3/16’’ | 11.00 | 0.433 | 25.4 | 1.00’’ | 11.7 | 170 | 35.1 | 509 |
| RFSB-006 | 6.35 | 1/4’’ | 13.20 | 0.519 | 38.1 | 1-1/2’’ | 9.3 | 135 | 27.9 | 405 |
| RFSB-009 | 9.52 | 3/8’’ | 16.60 | 0.654 | 57.15 | 2-1/4’’ | 7.0 | 101 | 21.0 | 305 |
| RFSB-012 | 12.70 | 1/2’’ | 20.30 | 0.799 | 70.00 | 2-3/4’’ | 5.7 | 82 | 17.1 | 248 |
| RFSB-015 | 15.87 | 5/8’’ | 24.50 | 0.965 | 82.55 | 3-1/4’’ | 4.3 | 62 | 12.9 | 187 |
| RFSB-022 | 22.20 | 7/8’’ | 27.90 | 1.099 | 145 | 5-3/4’’ | 3.3 | 47 | 9.9 | 144 |
| RFSB-025 | 25.40 | 1.00’’ | 34.50 | 1.358 | 157 | 6-1/4’’ | 3.0 | 43 | 9.0 | 131 |
| RFSB-031 | 31.75 | 1-1/4’’ | 40.8 | 1.606 | 204 | 8.00’’ | 2.3 | 34 | 6.9 | 100 |
