Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Pure Silicone Raw Material | Color: | White, Red, Blue, Gray, Green, Etc |
|---|---|---|---|
| Hardness: | 30-80 A | Feature: | Environment Friendly, Non-toxic, Tasteless, Safe And Reliable |
| Temperature: | -60℃~240℃ | ||
| High Light: | 6MPA soft flexible rubber tubing,6MPA flexible silicone rubber tubing,20m flexible silicone rubber tubing |
||

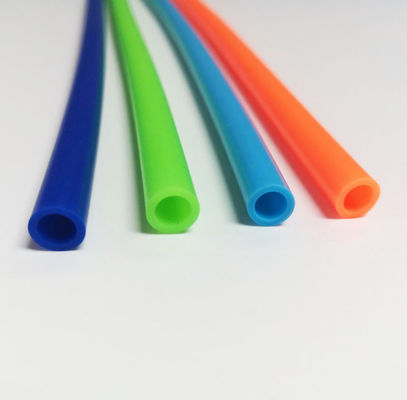

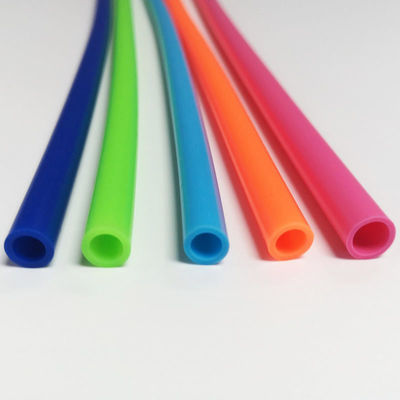

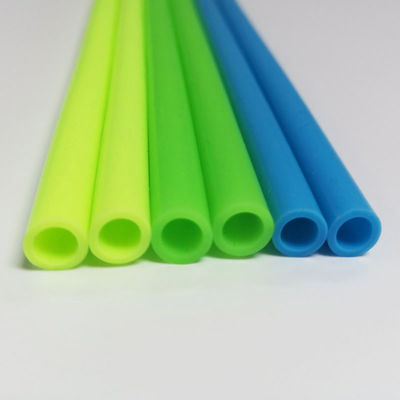

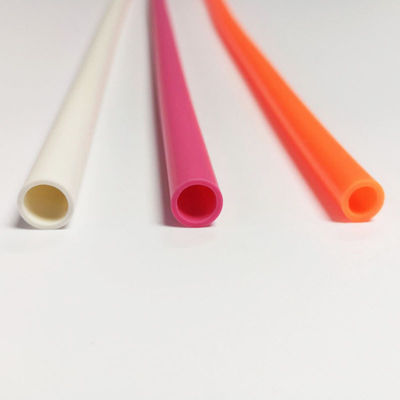

Multi-Color Silicone Tubing Silicone Sleeves Flexible and Unfading
Product Description
■ Cutting Material to Size: the material is the cut to the appropriate dimensions for the part being made. A 16" ID Hump Hose will require more material of greater dimensions than a 1/2'' ID Elbow for example.
■ Mandrel Wrap: the silicone sheet is actually wrapped by hand over the mandrel which has the inside diameter shape of the hose product that is being made. For highly complex geometry, a hand made silicone hose may take as long as 3 to 4 hours to manufacture.
■ Feature: It is impervious to UV lighting, and is non-toxic, chemically inert, even wall thickness, retains its flexibility & properties within -60~300 °C.
Specification
| Brand Name | Tenchy silicone |
| Model Number | TS-CT04 |
| Material | Pure silicone raw material |
| Name | Silicone Tubing |
| Packing | 50 meters to 100 meters per roll by customized OPP bag and Carton |
| Size | Depend on your choice |
| MOQ | 10000 meters |
| OEM/ODM | Yes |
| Payment Terms | L/C, T/T, Western Union |
| Application | Food Processing Equipment Dairy fluid handing tubings/hose High Voltage Insulation |
| Food Grade Silicone Tubing | ||||||
| Item # | Specification | Tolerance | Available Length per coil (meter) | |||
| ID(mm) | OD(mm) | Thickness (mm) |
for ID | for Thickness | ||
| ST-12 | 1.0 | 2.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-13 | 1.0 | 3.0 | 1.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-1525 | 1.5 | 2.5 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-153 | 1.5 | 3.0 | 0.8 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-23 | 2.0 | 3.0 | 0.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-24 | 2.0 | 4.0 | 1.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-25 | 2.0 | 5.0 | 1.5 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-26 | 2.0 | 6.0 | 2.0 | ±0.10 | ±0.05 | 30, 50, 100 |
| ST-34 | 3.0 | 4.0 | 0.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-35 | 3.0 | 5.0 | 1.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-36 | 3.0 | 6.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-46 | 4.0 | 6.0 | 1.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-47 | 4.0 | 7.0 | 1.5 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-48 | 4.0 | 8.0 | 2.0 | ±0.10 | ±0.10 | 30, 50, 100 |
| ST-57 | 5.0 | 7.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-58 | 5.0 | 8.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-59 | 5.0 | 9.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-510 | 5.0 | 10.0 | 2.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-68 | 6.0 | 8.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-69 | 6.0 | 9.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-79 | 7.0 | 9.0 | 1.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-710 | 7.0 | 10.0 | 1.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-711 | 7.0 | 11.0 | 2.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-712 | 7.0 | 12.0 | 2.5 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-713 | 7.0 | 13.0 | 3.0 | ±0.15 | ±0.10 | 30, 50, 100 |
| ST-810 | 8.0 | 10.0 | 1.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-811 | 8.0 | 11.0 | 1.5 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-812 | 8.0 | 12.0 | 2.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-814 | 8.0 | 14.0 | 3.0 | ±0.20 | ±0.10 | 30, 50, 100 |
| ST-912 | 9.0 | 12.0 | 1.5 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-913 | 9.0 | 13.0 | 2.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1012 | 10.0 | 12.0 | 1.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1013 | 10.0 | 13.0 | 1.5 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1014 | 10.0 | 14.0 | 2.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1016 | 10.0 | 16.0 | 3.0 | ±0.2 | ±0.10 | 30, 50, 100 |
| ST-1214 | 12.0 | 14.0 | 1.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1216 | 12.0 | 16.0 | 2.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1218 | 12.0 | 18.0 | 3.0 | ±0.2 | ±0.10 | 30, 50 |
| ST-1317 | 13.0 | 17.0 | 2.0 | ±0.2 | ±0.15 | 30, 50 |
| ST-1318 | 13.0 | 18.0 | 2.5 | ±0.2 | ±0.15 | 30, 50 |
| ST-1420 | 14.0 | 20.0 | 3.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1620 | 16.0 | 20.0 | 2.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1621 | 16.0 | 21.0 | 2.5 | ±0.25 | ±0.15 | 30, 50 |
| ST-1622 | 16.0 | 22.0 | 3.0 | ±0.25 | ±0.15 | 30, 50 |
| ST-1623 | 16.0 | 23.0 | 3.5 | ±0.25 | ±0.15 | 30, 50 |
| ST-1722 | 17.0 | 22.0 | 2.5 | ±0.3 | ±0.15 | 30, 50 |
| ST-1824 | 18.0 | 24.0 | 3.0 | ±0.3 | ±0.15 | 30, 50 |
| ST-1925 | 19.0 | 25.0 | 3.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2024 | 20.0 | 24.0 | 2.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2025 | 20.0 | 25.0 | 2.5 | ±0.4 | ±0.20 | 30, 50 |
| ST-2026 | 20.0 | 26.0 | 3.0 | ±0.4 | ±0.20 | 30, 50 |
| ST-2226 | 22.0 | 26.0 | 2.0 | ±0.4 | ±0.2 | 30, 50 |
| ST-2530 | 25.0 | 30.0 | 2.5 | ±0.6 | ±0.2 | 30, 50 |
| ST-2531 | 25.0 | 31.0 | 3.0 | ±0.6 | ±0.2 | 30, 50 |
| ST-3038 | 30.0 | 38.0 | 4.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3040 | 30.0 | 40.0 | 5.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3238 | 32.0 | 38.0 | 3.0 | ±0.6 | ±0.3 | 30, 50 |
| ST-3240 | 32.0 | 40.0 | 4.0 | ±0.6 | ±0.4 | 30, 50 |
| ST-3545 | 35.0 | 45.0 | 5.0 | ±0.6 | ±0.4 | 30, 50 |
| ST-3844 | 38.0 | 44.0 | 3.0 | ±0.6 | ±0.4 | 30, 50 |
Company Profile
Tenchy Silicone&Rubber Co.,Ltd specializes in silicone extrusion and molding products. Our current product line includes silicone sealing ring, silicone tubing, silicone reinforced hose, silicone molded parts, silicone gasket, silicone profile, silicone foam tube, which can be customized for different shapes, hardness, color, and provide customers with more choices.
Tenchy Silicone is composed of a professional and experienced team. Our engineers have more than 10 experience in the silicone field, and are familiar with the customization of various types and properties of silicone products. At the same time, we also equipped with the most advanced production machines and testing equipment, we are always in the Forefront of the industry.
Packing & Delivery
All products will be checked carefully and packed in good condition with high quality carton before shipping.
We e-mail all customers with tracking. information immediately after the shipment for status tracking.
Delivery time: within 3 days after payment.
Courier: DHL, TNT, UPS, Fedex, delivery door to door.
