Product Details:
Payment & Shipping Terms:
|
| Product Name: | Polyster Braided Silicone Hose | Material: | Silicone Raw Material+Polyster |
|---|---|---|---|
| Certification: | USP Class VI, FDA, ROSH, SGS | ID Range: | φ3-50mm |
| Application: | Beverageand Food Filling Lines, Pharmacy Transfering, Chemical Feed Lines | Color: | Translucent, White, Red, Black,etc |
| High Light: | Food grade Braid Reinforced Silicone Tubing,20M Braid Reinforced Silicone Tubing,20M high pressure silicone tubing |
||

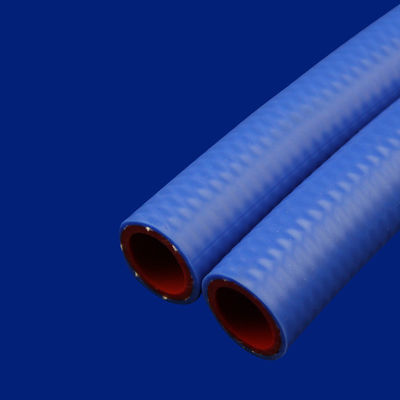

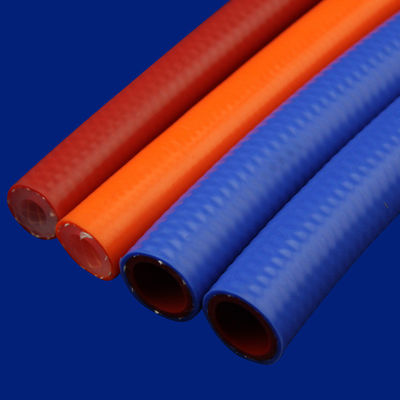

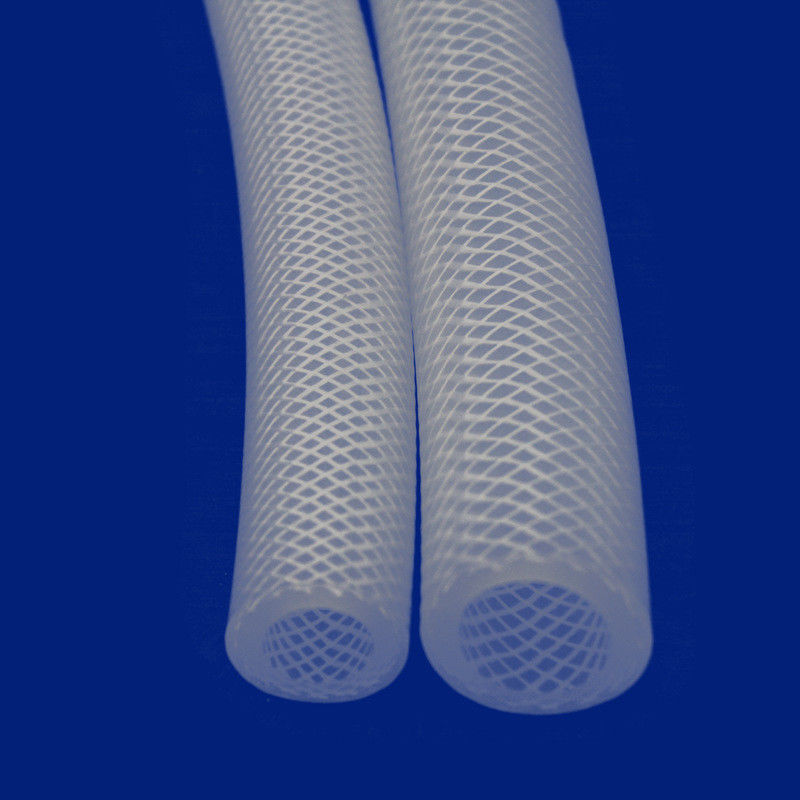

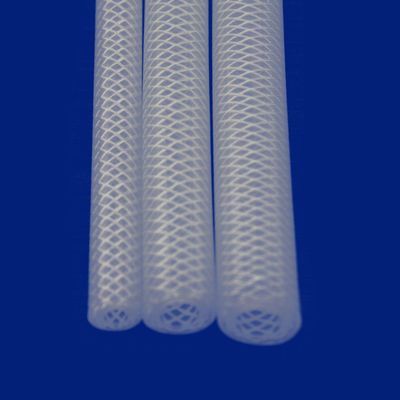

High Purity Braid Reinforced Hose
The silicone hose is platinum cured ,which makes the hose odorless and tasteless,In addition, the inner and outer walls of the silicone hose are completely smooth, making the flow of materials in the sanitary hose fully smooth, and at the same time making the cleaning of the silicone hose more convenient and effective. It is the hose for the pharmaceutical industry and Food&Beverage equipment.
Main Features
● Platinum cured for the highest degree of purity
● Withstand extreme temperature, chemicals, ozone, radiation, U.V, gases, moisture
● Able to use in vacuum environment, anti-breaking, and anti-kinking
● Durable and Reusable - able to withstand repeated sterilization
● Working temperature range: -40℃ to 180℃;
● Raw materials meet FDA requirements per FDA 21 CFR 177.2600 for use with food contact
| Brand Name: | Tenchy |
| Material: | Silicone raw material, Polyster |
| Color: | Customized |
| Size: | Customized |
| Hardness: | 70A |
| Feature: | Environment friendly, non-toxic, tasteless, Heat Resistant |
| Temperature: | -60℃~200℃ |
| Application: | Food Processing Equipment Pharmaceutical & Bio Pharma Industries Aerospace & Military Industries Brewery Transfer Silicone Tubing |
Specification
| Item Code | ID | OD |
Min. Bend Radius Inch |
Working Pressure | Burst Pressure | |||||
| (mm) | (inch) | (mm) | (inch) | (mm) | (inch) | (Bar) | Psi | (Bar) | (Psi) | |
| RFSB-003 | 3.18 | 1/8’’ | 9.00 | 0.354 | 12.7 | 1/2’’ | 13.8 | 200 | 41.4 | 600 |
| RFSB-005 | 5.00 | 3/16’’ | 11.00 | 0.433 | 25.4 | 1.00’’ | 11.7 | 170 | 35.1 | 509 |
| RFSB-006 | 6.35 | 1/4’’ | 13.20 | 0.519 | 38.1 | 1-1/2’’ | 9.3 | 135 | 27.9 | 405 |
| RFSB-009 | 9.52 | 3/8’’ | 16.60 | 0.654 | 57.15 | 2-1/4’’ | 7.0 | 101 | 21.0 | 305 |
| RFSB-012 | 12.70 | 1/2’’ | 20.30 | 0.799 | 70.00 | 2-3/4’’ | 5.7 | 82 | 17.1 | 248 |
| RFSB-015 | 15.87 | 5/8’’ | 24.50 | 0.965 | 82.55 | 3-1/4’’ | 4.3 | 62 | 12.9 | 187 |
| RFSB-022 | 22.20 | 7/8’’ | 27.90 | 1.099 | 145 | 5-3/4’’ | 3.3 | 47 | 9.9 | 144 |
| RFSB-025 | 25.40 | 1.00’’ | 34.50 | 1.358 | 157 | 6-1/4’’ | 3.0 | 43 | 9.0 | 131 |
| RFSB-031 | 31.75 | 1-1/4’’ | 40.8 | 1.606 | 204 | 8.00’’ | 2.3 | 34 | 6.9 | 100 |
