Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Pure Silicone | Hardness: | Shore 30A To 80A |
|---|---|---|---|
| Temperature: | -60℃~200℃ | Feature: | Environment Friendly, Non-toxic, Tasteless |
| Color: | White, Blue, Gray, Etc | Size: | 0.25mm To 20mm |
| Processing method: | Extrusion | ||
| High Light: | Tasteless Food Grade Silicone Tubing,Shore 30A Flexible Silicone Tubing,Extrusion Food Grade Silicone Tubing |
||

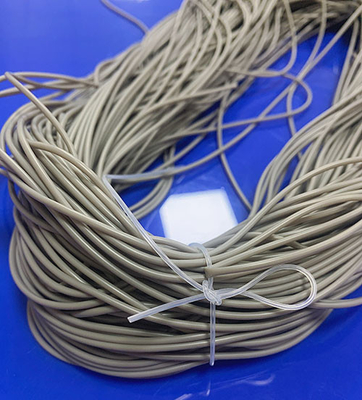

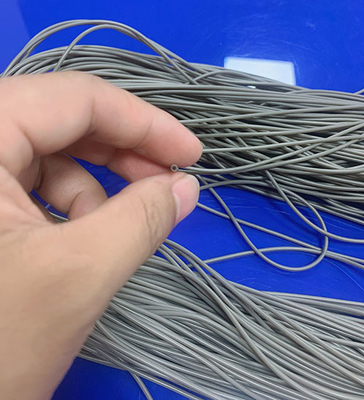

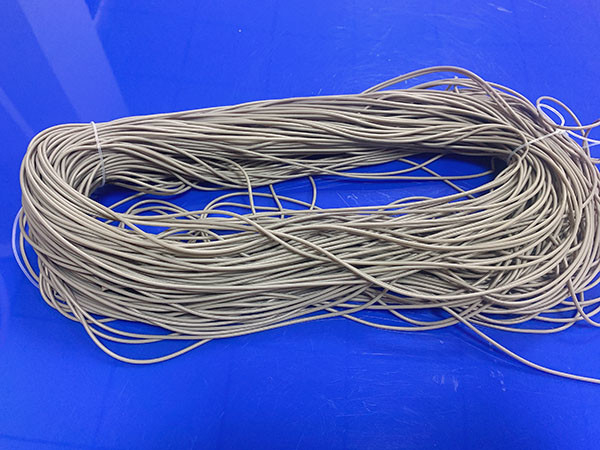

1.5 x 1.9mm food grade small diameter flexible silicone tubing
1/6Tenchy provides the food grade silicone tubing, which is made of high elasticity silicone raw material, the silicone tubing meets FDA and LFGB food-grade standards. We can customize silicone tubes of different sizes and colors for our customers.
The silicone tubing can withstand repeated use and sterilization, and this doesn't influence its resilience and shape. All silicone tubes produced by Tenchy are platinum cured, they are odorless, tasteless and non-toxic, suitable for food contact applications.
Material Description
● All silicone products are produced in clean room environment
● Standard colors: black, red, blue, white, gray, green, transparent colors (other colors can be produced on request)
Features
• Resistance to UV and Ozone
• Harmless toxic and physiological effect to humans
• Odorless & Test-less
• Superiors/High Tear Strength
• High & Low Temperature Rating
|
Physical Properties |
|
|
Hardness: |
50±5A |
|
Density: |
1.18±0.05g/cm³ |
|
Tensile strength : |
>8.0 MPa |
|
Elongation at break: |
>380% |
|
Working temperature: |
-60°C to 200°C |
|
Compression set: |
8% (150℃/22h) |
|
Tear resistance (tear strength), Die B: |
>20KN/m |
|
Food Grade Silicone Tubing |
||||||
|
Item # |
Specification |
Tolerance |
Available Length per coil (meter) |
|||
|
ID(mm) |
OD(mm) |
Thickness |
for ID |
for Thickness |
||
|
ST-12 |
1.0 |
2.0 |
0.5 |
±0.10 |
±0.05 |
30, 50, 100 |
|
ST-1525 |
1.5 |
2.5 |
0.5 |
±0.10 |
±0.05 |
30, 50, 100 |
|
ST-23 |
2.0 |
3.0 |
0.5 |
±0.10 |
±0.05 |
30, 50, 100 |
|
ST-24 |
2.0 |
4.0 |
1.0 |
±0.10 |
±0.05 |
30, 50, 100 |
|
ST-35 |
3.0 |
5.0 |
1.0 |
±0.10 |
±0.10 |
30, 50, 100 |
|
ST-47 |
4.0 |
7.0 |
1.5 |
±0.10 |
±0.10 |
30, 50, 100 |
|
ST-58 |
5.0 |
8.0 |
1.5 |
±0.15 |
±0.10 |
30, 50, 100 |
|
ST-69 |
6.0 |
9.0 |
1.5 |
±0.15 |
±0.10 |
30, 50, 100 |
|
ST-710 |
7.0 |
10.0 |
1.5 |
±0.15 |
±0.10 |
30, 50, 100 |
|
ST-812 |
8.0 |
12.0 |
2.0 |
±0.20 |
±0.10 |
30, 50, 100 |
|
ST-913 |
9.0 |
13.0 |
2.0 |
±0.2 |
±0.10 |
30, 50, 100 |
|
ST-1014 |
10.0 |
14.0 |
2.0 |
±0.2 |
±0.10 |
30, 50, 100 |
|
ST-1216 |
12.0 |
16.0 |
2.0 |
±0.2 |
±0.10 |
30, 50 |
|
ST-1420 |
14.0 |
20.0 |
3.0 |
±0.25 |
±0.15 |
30, 50 |
|
ST-1621 |
16.0 |
21.0 |
2.5 |
±0.25 |
±0.15 |
30, 50 |
|
ST-1824 |
18.0 |
24.0 |
3.0 |
±0.3 |
±0.15 |
30, 50 |
|
ST-2026 |
20.0 |
26.0 |
3.0 |
±0.4 |
±0.20 |
30, 50 |
|
ST-2226 |
22.0 |
26.0 |
2.0 |
±0.4 |
±0.2 |
30, 50 |
|
ST-2531 |
25.0 |
31.0 |
3.0 |
±0.6 |
±0.2 |
30, 50 |
|
ST-3038 |
30.0 |
38.0 |
4.0 |
±0.6 |
±0.3 |
30, 50 |
|
ST-3240 |
32.0 |
40.0 |
4.0 |
±0.6 |
±0.4 |
30, 50 |
|
ST-3844 |
38.0 |
44.0 |
3.0 |
±0.6 |
±0.4 |
30, 50 |
Our Capability and Service
Tenchy can provide fast samples service. Our factory has thousands of extrusion toolings, and we can quickly customize all kinds of silicone tubing and extrusion products for customers. With more than 13 years' experience in the silicone industry, we will help our customers find Various solutions and provide fast samples service.
Custom Size
● The wall thickness of the product can be 0.25mm to 20mm
● Minimum size 0.5*1.2mm
● Cut-to-Length service
● Minimum order quantity: 1000 meters
● Fast sample delivery, 2-3 days finish new samples
